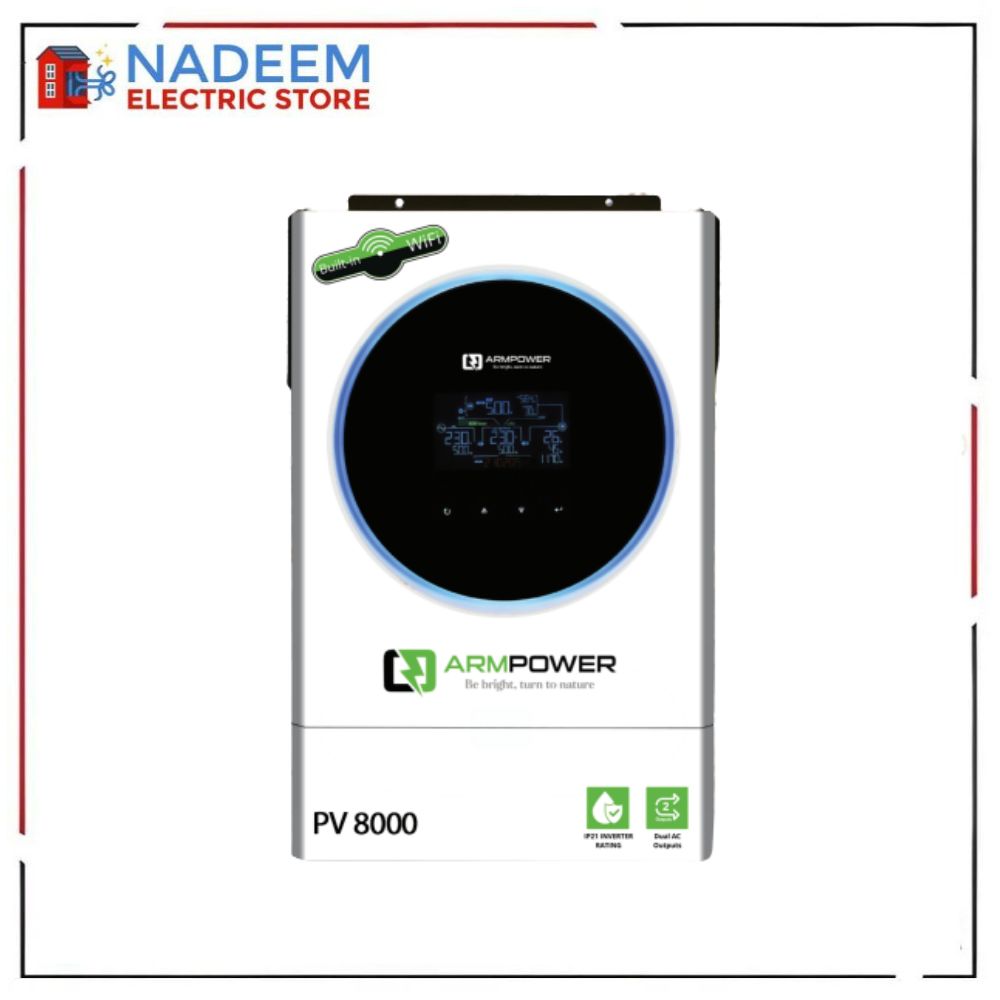

ARM Power PV 8000 Hybrid Inverter Infini Pro Series 6.2KW)

ARM Power PV 8000 Hybrid Inverter Infini Pro Series 6.2KW)

ARM Power PV 8000 Hybrid Inverter  Infini Pro Series 6.2KW)    ARM Power PV 8000 Hybrid Inverter...
Vendor: Dongjin
Availability: In Stock
Rs.156,000.00
Rs.159,000.00
Rs.156,000.00
Please hurry! Only 50 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Zood Logo
Subtotal: Rs.156,000.00

Shipping

Cash on Delivery Available All over Pakistan .

Other city 5 to 7 day delivery

Estimated to be delivered on 30/08/2023 - 5/09/2023.

7 Days Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the customer

🔸 Cash on Delivery is available

🔸 Cash on Delivery is available 🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
ARM Power PV 8000 Hybrid Inverter Infini Pro Series 6.2KW)

ARM Power PV 8000 Hybrid Inverter Infini Pro Series 6.2KW)

Rs.159,000.00 Rs.156,000.00
ARM Power PV 8000 Hybrid Inverter Infini Pro Series 6.2KW)

ARM Power PV 8000 Hybrid Inverter Infini Pro Series 6.2KW)

Rs.159,000.00 Rs.156,000.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Description
Description
x

ARM Power PV 8000 Hybrid Inverter  Infini Pro Series 6.2KW)



ARM Power PV 8000 Hybrid Inverter Specifications



Parameter Value Source
Model

Infini Pro Series 6.2KW 1


Phase

1-phase in/1-phase out 2


RATED OUTPUT POWER

6200W 3


MAXIMUM PV INPUT POWER

8000W 4


MAXIMUM CHARGING POWER

6200W 5


Maximum Conversion Efficiency (DC/AC)

96% 6


Nominal Output Voltage (AC)

220/230/240 VAC 7


Output Waveform (Battery Mode)

Pure sinewave 8





PV Input (DC) Specifications (Grid-Tie & Hybrid Operation)



Parameter Value Source
Nominal DC Voltage/Maximum DC Voltage

360 VDC/500 VDC 9


Start-up Voltage / Initial Feeding Voltage

120VDC/150 VDC 10


MPP Voltage Range

120 VDC-430 VDC 11


Number of MPP Trackers/Maximum Input Current

1/27A 12





Battery & Charger Specifications



Parameter Value Source
Nominal DC Voltage

48 VDC 13


Maximum Solar Charging Current

120A 14


Maximum AC Charging Current

120A 15


Maximum Charging Current

120A 16





AC Input & Output Specifications



Parameter Value Source
AC Start-up Voltage/Auto Restart Voltage

120-140 VAC/180 VAC 17


Acceptable Input Voltage Range

90-280 VAC or 170-280 VAC 18


Maximum AC Input Current

40A 19


Output Voltage Range (AC)

184-264.5 VAC or 195.5-253 VAC (Selectable) 20


Nominal Output Current (Grid)

26A 21


Power Factor

0.99 22


Efficiency (DC to AC) (Off-Grid/Hybrid)

93% 23





General & Environmental Specifications



Parameter Value Source
Dimension, (mm)

24


Net Weight (kgs)

12 25


Parallel Function

Yes. Up to 9 units 26262626262626


Communication Port

USB/RS232/RS485/Wifi/Dry-contact 27


Operating Temperature

to 28


Humidity

RH (Non-condensing) 29


Warranty

2 Year Parts & 2 Year Service 30





Key Features Summary



  •

    Dual outputs for smart load management31313131.



  •

    Built-in Wi-Fi for mobile monitoring (App is available)323232323232323232.



  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup33.



  • Supports Self-consumption and Feed-in to the grid34343434.



  • Programmable supply priority for PV, Battery or Grid35.



  •

    Touchable button with colored LCD36363636.



  • Maximum PV input current is 27A37.



  • Reserved communication port for BMS38383838.



  • Conformal Coating For PCB protection From Humidity39.
