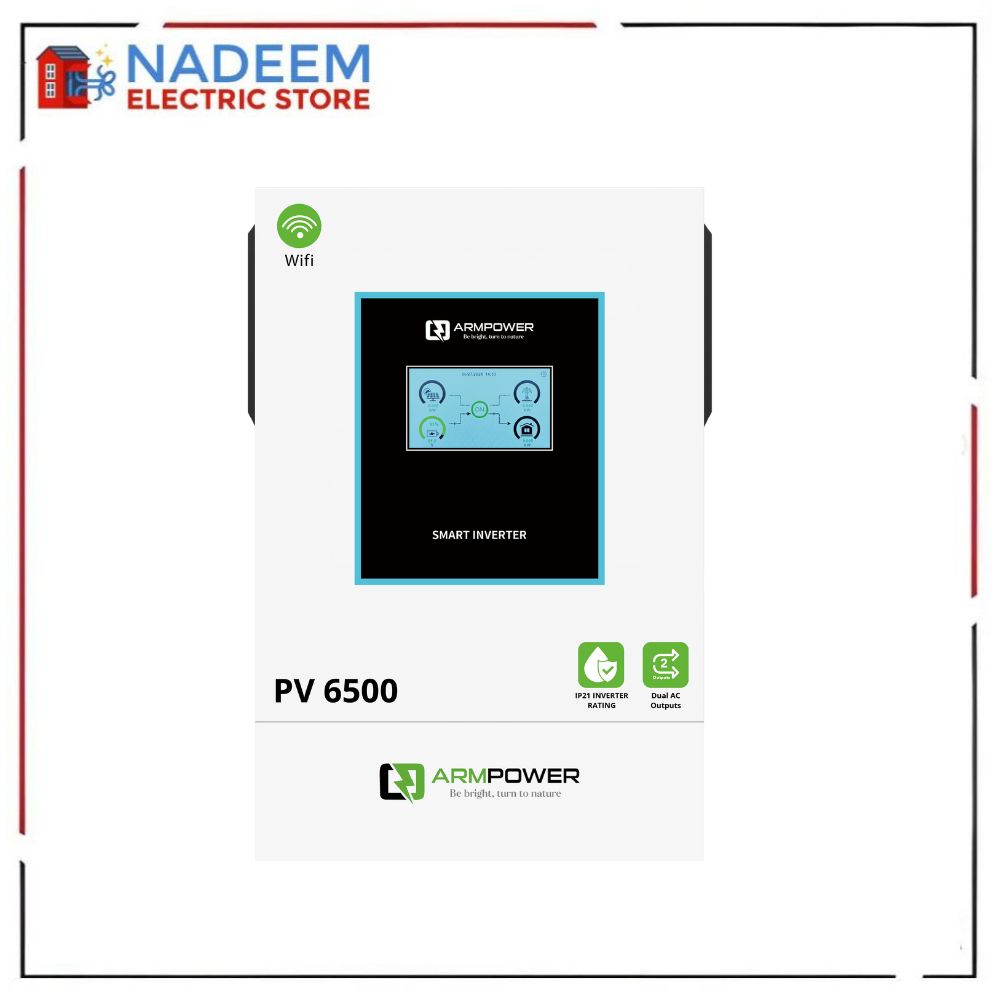

ARM TITAN Series Hybrid Inverter,6500W-4KW-24V

ARM TITAN Series Hybrid Inverter,6500W-4KW-24V

ARM TITAN Series Hybrid Inverter,6500W-4KW-24V  2. ARM TITAN Series PV 4KW (24V) Specification Category Parameter Value Model...
Vendor: ARM Power
Availability: In Stock
Rs.110,000.00
Rs.115,000.00
Rs.110,000.00
Please hurry! Only 50 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Zood Logo
Subtotal: Rs.110,000.00

Shipping

Cash on Delivery Available All over Pakistan .

Other city 5 to 7 day delivery

Estimated to be delivered on 30/08/2023 - 5/09/2023.

7 Days Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the customer

🔸 Cash on Delivery is available

🔸 Cash on Delivery is available 🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
ARM TITAN Series Hybrid Inverter,6500W-4KW-24V

ARM TITAN Series Hybrid Inverter,6500W-4KW-24V

Rs.115,000.00 Rs.110,000.00
ARM TITAN Series Hybrid Inverter,6500W-4KW-24V

ARM TITAN Series Hybrid Inverter,6500W-4KW-24V

Rs.115,000.00 Rs.110,000.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Description
Description
x

ARM TITAN Series Hybrid Inverter,6500W-4KW-24V

2. ARM TITAN Series PV 4KW (24V)

Specification Category Parameter Value
Model & Power Model

6500W-4KW-24V 14


Rated Power (AC Output-Load)

4000W 15


PV Input Max. PV Input Power

6500W 16


Max. PV Input Current

27A 17


Battery Parameters Rated Voltage

24V 18


Constant Charging Voltage

28.2V 19


Float Charging Voltage

27V 20


AC Output - Load Dual Output Power (W)

3600/3600 21


Second Load Cut Off Voltage

22V 22


Second Load Return Voltage

26V 23


Peak Power (VA)

7200 24


Other Weight (Kg)

11.2 25


Parallel Interface

Not Support Parallel 26





Common Technical Specifications (Both Models)



Specification Category Parameter Value
General Inverter Type

Pure Sine Wave Solar Hybrid Inverter 27272727


Warranty

2 years (Parts & Service) 282828


Dimensions () (mm)

29


Protection Rating

IP21 30


PV Input PV Charging Method

MPPT 31


MPPT Tracking Range (V)

60-500 32


Max. PV Input Voltage (V)

500 33


Charging Max. PV Charge Current (A)

120 34


Max. AC Charge Current (A)

100 35


Max. Charge Current (A)

120 36


AC Input Input Voltage Range

(Normal Mode) 37, (UPS Mode) 38


AC Output Output Wave

Pure Sine Wave 39


Transfer Time (Adjustable)

10ms for Computer Equipment, 20ms for Household Equipment 40


Peak Efficiency (Battery Model)

94% 41


Operating Conditions Operating Temperature ()

42


Storage Temperature ()

43


Operating Humidity

(Non-condensing) 44


Noise (dB)

45


Communication LCD

LCD already, LED touch screen optional 46


RS232

5PIN/Pitch 2.54mm, Baud Rate 2400 47





Key Features



  •

    Dual back up output48.



  •

    Max. efficiency is greater than 49.



  • Compatible with the grid and supports to sell electric energy50.

  • The parallel current can be dynamically adjusted after paralleling51.



  • Supports dry contact starting generator (Optional)52.



  • Normal operation of only-connection PV panels53.



  • Supports multiple parallel machines, up to 9 parallel (for the 6.5kW model)54.



  • The maximum current of a single string module is 27A55.



  • Supports three-phase output after single-phase parallel operation56.



  • Built-in Wi-Fi57.
