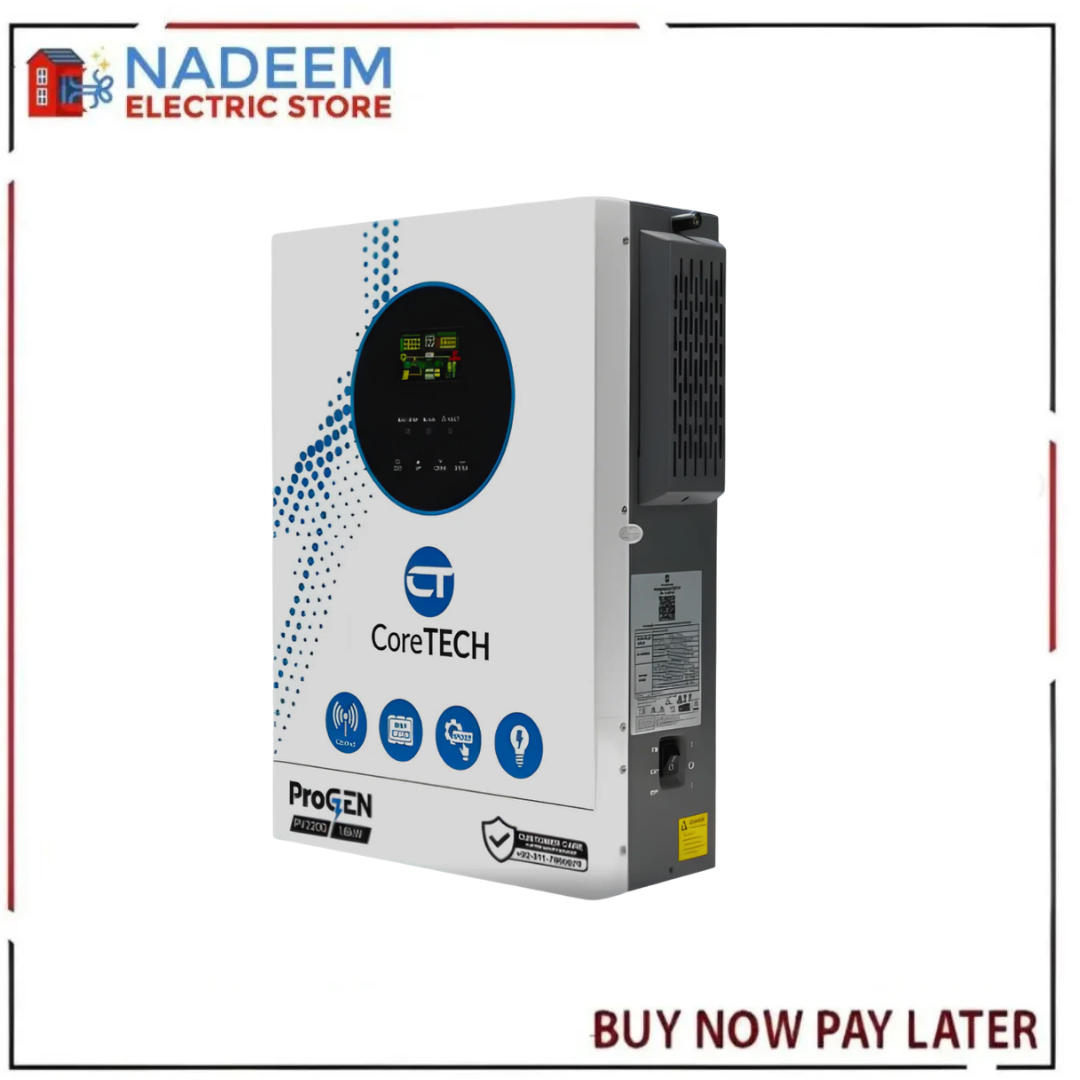

CoreTECH ProGEN PV 2200 – 1.6kW OffGrid Solar Inverter

Product Overview

The CoreTECH ProGEN PV 2200 (1.6kW) is a compact hybrid solar inverter designed to power home appliances efficiently. It converts solar energy into battery storage and provides uninterrupted power during night time or power outages.

General Specifications

  • Model: ProGEN PV 2200

  • Rated Output Power: 1600W

  • Maximum PV Input Power: 2200W

  • Peak Power: 3200VA

  • Waveform: Pure Sine Wave

  • Efficiency (Battery Mode): Up to 94%

AC Input

  • Input Wiring: L + N + PE

  • Rated Input Voltage: 220 / 230 / 240 VAC

  • Voltage Range:

    • 90–280 VAC ±3V (APL Mode – Home Appliances)

    • 170–280 VAC ±3V (UPS Mode – Computers)

  • Frequency: 50Hz / 60Hz (Auto Adaptive)

AC Output

  • Rated Capacity: 1600W

  • Output Voltage: 220 / 230 / 240 VAC ±5%

  • Output Frequency: 50 / 60 Hz ±0.1%

  • Transfer Time:

    • UPS Mode (Computers): 10ms

    • APL Mode (Appliances): 20ms

Battery

  • Battery Voltage: 12V DC

  • Constant Charging Voltage (Adjustable): 14.1V DC

  • Float Charging Voltage (Adjustable): 13.5V DC

Solar Charging (MPPT)

  • PV Charging Mode: MPPT

  • Max PV Input Power: 2200W

  • MPPT Voltage Range: 30 – 500V DC

  • Best Operating Voltage: 300 – 400V DC

  • Max PV Input Voltage: 500V DC

  • Max PV Charging Current: 100A

  • Max AC Charging Current: 60A

  • Max Total Charging Current: 100A

Display & Interface

  • Display: LCD (Running Mode, Load, Input, Output, etc.)

  • RS232: Supported (Baud Rate: 2400)

  • Communication Options:

    • Lithium Battery BMS Card

    • WiFi Card

    • Dry Contact

  • Parallel Operation: ❌ Not Supported

Environmental Conditions

  • Operating Temperature: -10°C to 50°C

  • Operating Humidity: 20% – 95% (Non-condensing)

  • Storage Temperature: -15°C to 60°C

  • Altitude:

    • Up to 1000m (Full performance)

    • Max 4000m with derating (IEC 62040)

  • Noise Level: ≤ 50 dB

  • Ingress Protection: IP21

Ideal For

  • Small homes & shops

  • Lights, fans, TV, router, computers

  • High-voltage solar panels (up to 500V)

  • Lithium & lead-acid batteries
