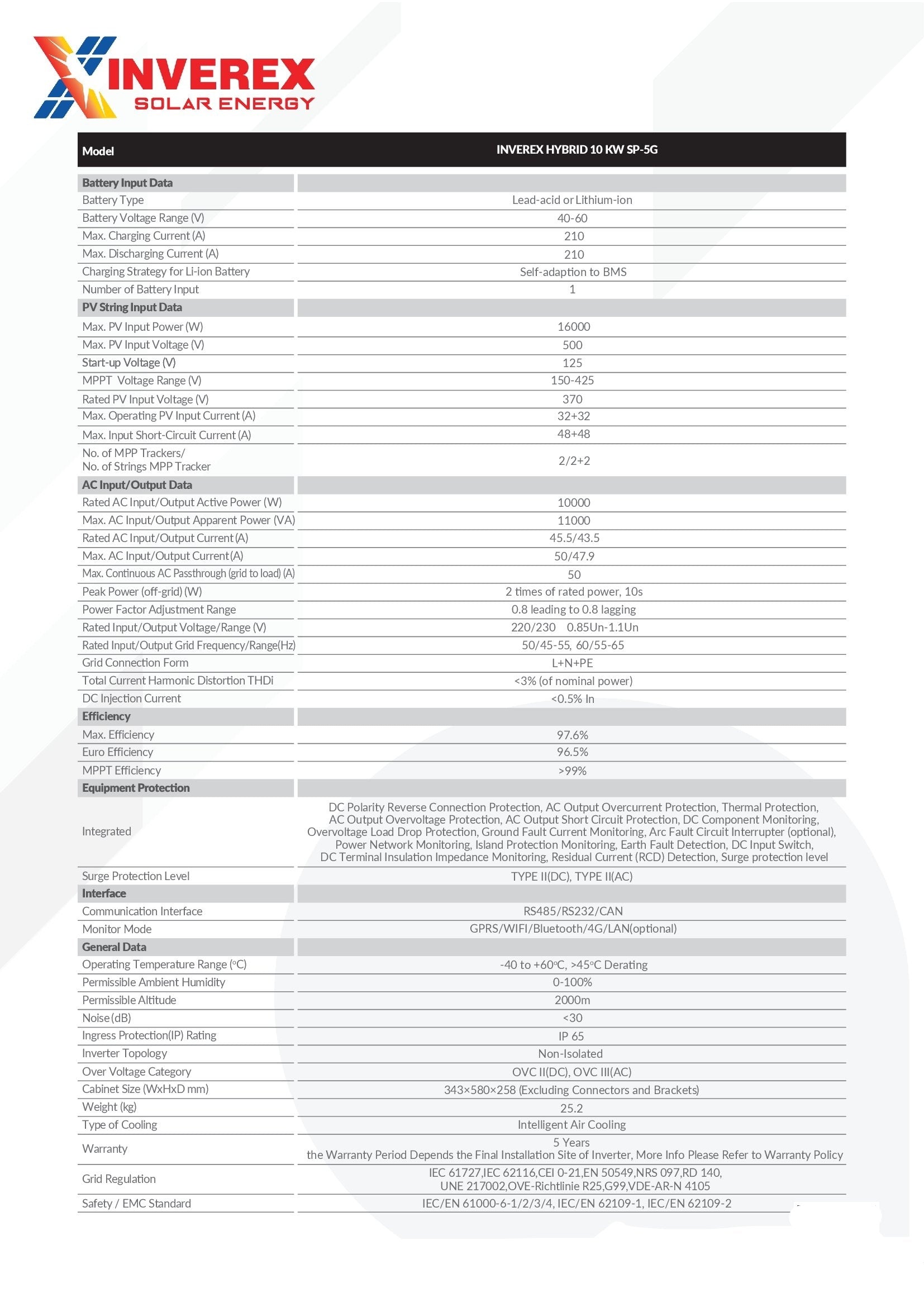

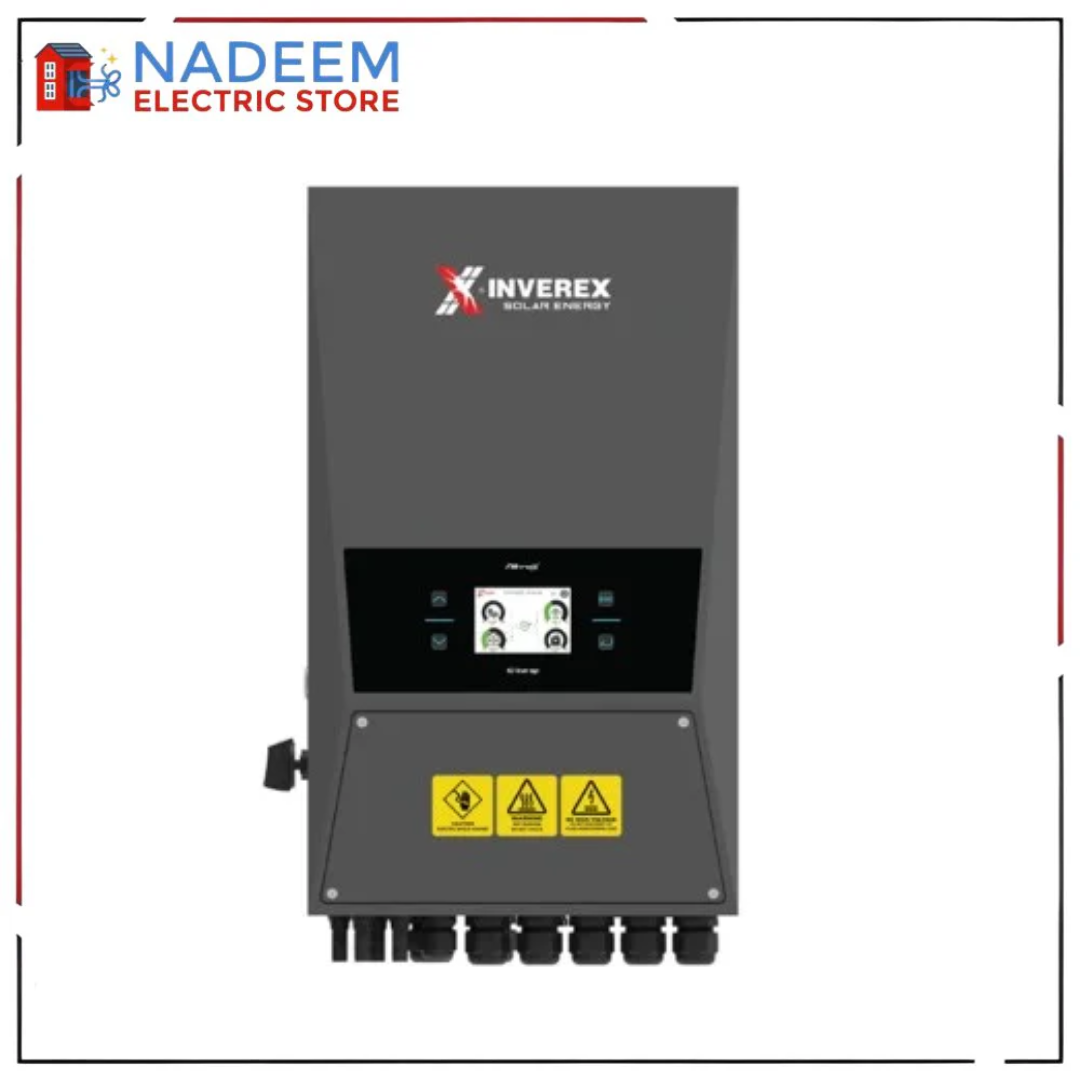

INVEREX HYBRID 10 KW SP-5G
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40–60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 1
Max. PV Input Power (W): 16000
Max. PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150–425
Rated PV Input Voltage (V): 370
Max. Operating PV Input Current (A): 32 + 32
Max. Input Short-Circuit Current (A): 48 + 48
No. of MPP Trackers / Strings per MPPT: 2 / 2 + 2
Rated AC Input / Output Active Power (W): 10000
Max. AC Input / Output Apparent Power (VA): 11000
Rated AC Input / Output Current (A): 45.5 / 43.5
Max. AC Input / Output Current (A): 50 / 47.9
Max. Continuous AC Passthrough (grid to load) (A): 50
Peak Power (off-grid): 2 × rated power, 10s
Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Rated Input / Output Voltage / Range (V): 220 / 230, 0.85Un–1.1Un
Rated Input / Output Grid Frequency / Range (Hz): 50 / 45–55, 60 / 55–65
Grid Connection Form: L + N + PE
Total Current Harmonic Distortion (THDi): <3% (of nominal power)
DC Injection Current: <0.5% In
Max. Efficiency: 97.6%
Euro Efficiency: 96.5%
MPPT Efficiency: >99%
DC Polarity Reverse Connection Protection
AC Output Overcurrent Protection
Thermal Protection
AC Output Overvoltage Protection
AC Output Short Circuit Protection
DC Component Monitoring
Overvoltage Load Drop Protection
Ground Fault Current Monitoring
Arc Fault Circuit Interrupter (optional)
Power Network Monitoring
Island Protection Monitoring
Earth Fault Detection
DC Input Switch
DC Terminal Insulation Impedance Monitoring
Residual Current (RCD) Detection
Surge Protection Level: TYPE II (DC), TYPE II (AC)
Communication Interface: RS485 / RS232 / CAN
Monitor Mode: GPRS / WiFi / Bluetooth / 4G / LAN (optional)
Operating Temperature Range (°C): -40 to +60°C, >45°C derating
Permissible Ambient Humidity: 0–100%
Permissible Altitude: 2000 m
Noise (dB): <30
Ingress Protection (IP) Rating: IP65
Inverter Topology: Non-isolated
Over Voltage Category: OVC II (DC), OVC III (AC)
Cabinet Size (W×H×D mm): 343 × 580 × 258 (excluding connectors & brackets)
Weight (kg): 25.2
Type of Cooling: Intelligent Air Cooling
Warranty: 5 Years
(Final installation site dependent – refer to warranty policy)
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140,
UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
IEC / EN 61000-6-1/2/3/4
IEC / EN 62109-1
IEC / EN 62109-2
