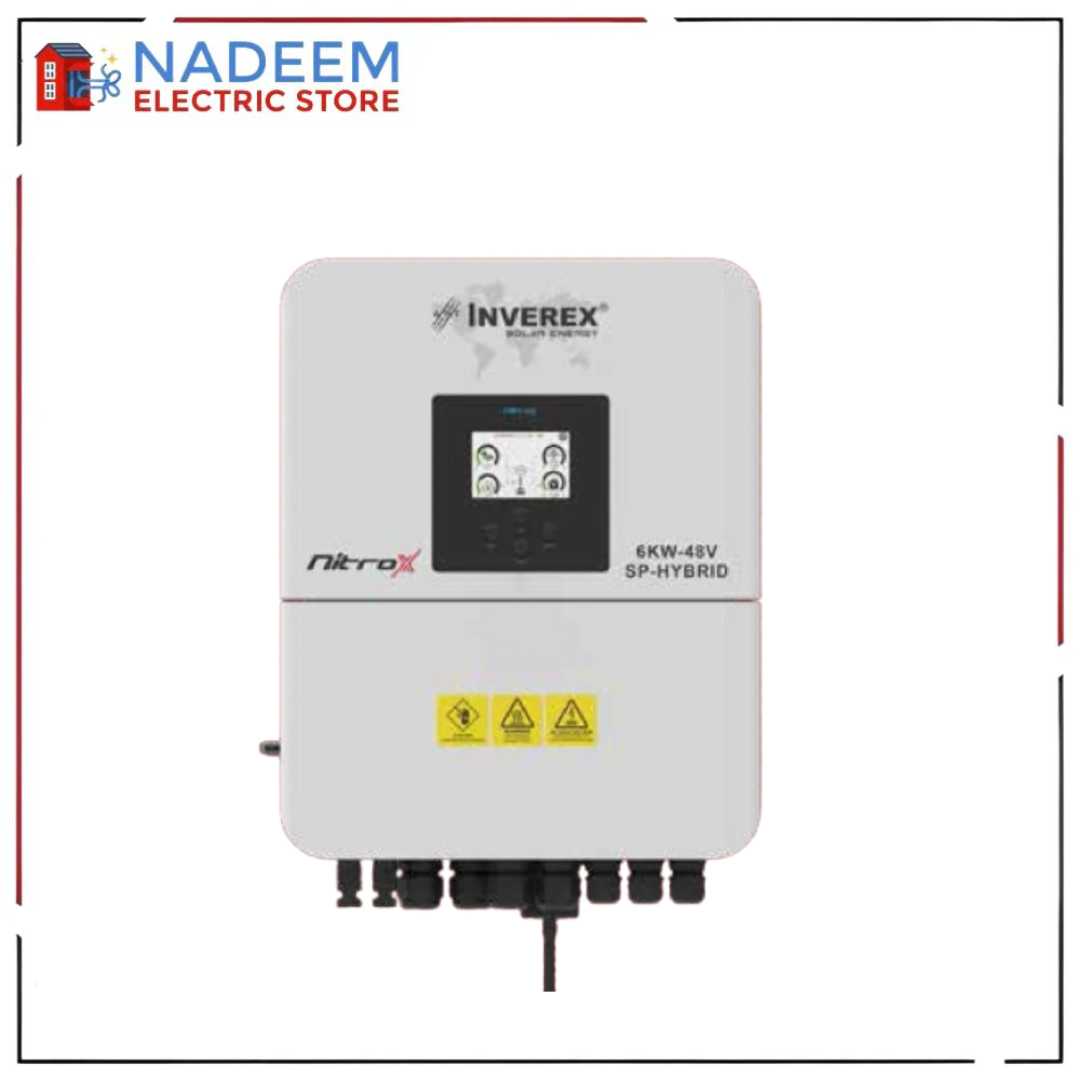

Inverex Nitrox 6KW – 48 V Hybrid Solar inverter (Single phase)

Inverex Nitrox 6 KW – 48 V Solar Inverter

The Inverex Nitrox 6 KW – 48 V Solar Inverter is a high-performance, single-phase inverter designed to optimize solar energy conversion. With a 6 KW capacity and 48 V input, it ensures efficient power delivery while supporting a variety of solar panel configurations.

Key Features

  • 7800 Watts MPPT Support: Can handle up to 600 watts per solar panel, maximizing solar energy generation.
  • 140 AMP Solar Charger: Ensures rapid and efficient battery charging, enhancing overall system performance.
  • Smart PV Monitoring Platform: Allows remote monitoring and control, giving you real-time insights into system performance.
  • Max. Efficiency 97.6%: High efficiency ensures maximum power output with minimal loss.
  • Parallel Connection Support: Enables scalability, allowing you to expand your system by connecting multiple inverters.
  • IP65 Ingress Protection: Designed for durability, the inverter is protected against dust and water ingress, making it suitable for outdoor installations.
  • Generator Connection Support: Provides flexibility in connecting to a generator for backup power during emergencies.
  • High Surge Endurance: Can withstand power surges, protecting the system from damage during high load conditions.
  • High Power Factor: Ensures more efficient power usage, reducing energy waste and improving overall performance.

Summary

The Inverex Nitrox 6 KW – 48 V Solar Inverter is the perfect solution for residential and commercial solar applications. Its robust features, including high efficiency, scalability, and generator support, make it a reliable and flexible choice for all your solar energy needs.

Battery Input Data
Tables Battery Type Tables Lead-acid or Li-lon
Battery Voltage Range (V) 40~60
Max. Charging Current (A) 135
Max. Discharging Current (A) 135
External Temperature Sensor Optional
Charging Curve 3 Stages/Equalization
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 7800W
Rated PV Input Voltage (V) 370 (125~500)
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Full Load DC Voltage Range (V) 300-425
PV Input Current (A) 13+13A
Max. PV ISC (A) 17+17A
Number of MPPT/Strings per MPPT 2/1+1
AC Output Data
Rated AC Output and UPS Power (W) 6000
Max. AC Output Power (W) 6600
AC Output Rated Current (A) 27.3/26.1A
Max. AC Current (A) 30/28.7A
Max. Continuous AC Passthrough (A) 40
Peak Power (off grid) 2 time of rated power, 10 S
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz; 220V/187V-242V,230V/195.5V-253V
Grid Type Single Phase
DC injection current (mA) THD<3 % (Linear load<1.5%)
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency >99%
Transfer time 4ms
Protection
Integrated PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection,Surge protection
Certifications and Standards
Grid Regulation EN50549,AS4777.2,VDE0126, IEC61727,VDEN4105,G99, NBT32004,CEI0-21, NRS097, NBR16149/16150, RD1699
Safety EMC / Standard IEC62109-1/-2, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
General Data
Operating Temperature Range (°C) -45~60°C, >45°C derating
Cooling Smart cooling
Noise (dB) <30 dB
Communication with BMS RS485; CAN
Weight (kg) 14
Size (mm) 330WX433H×238D
Protection Degree IP65
Installation Style Wall-mounted
