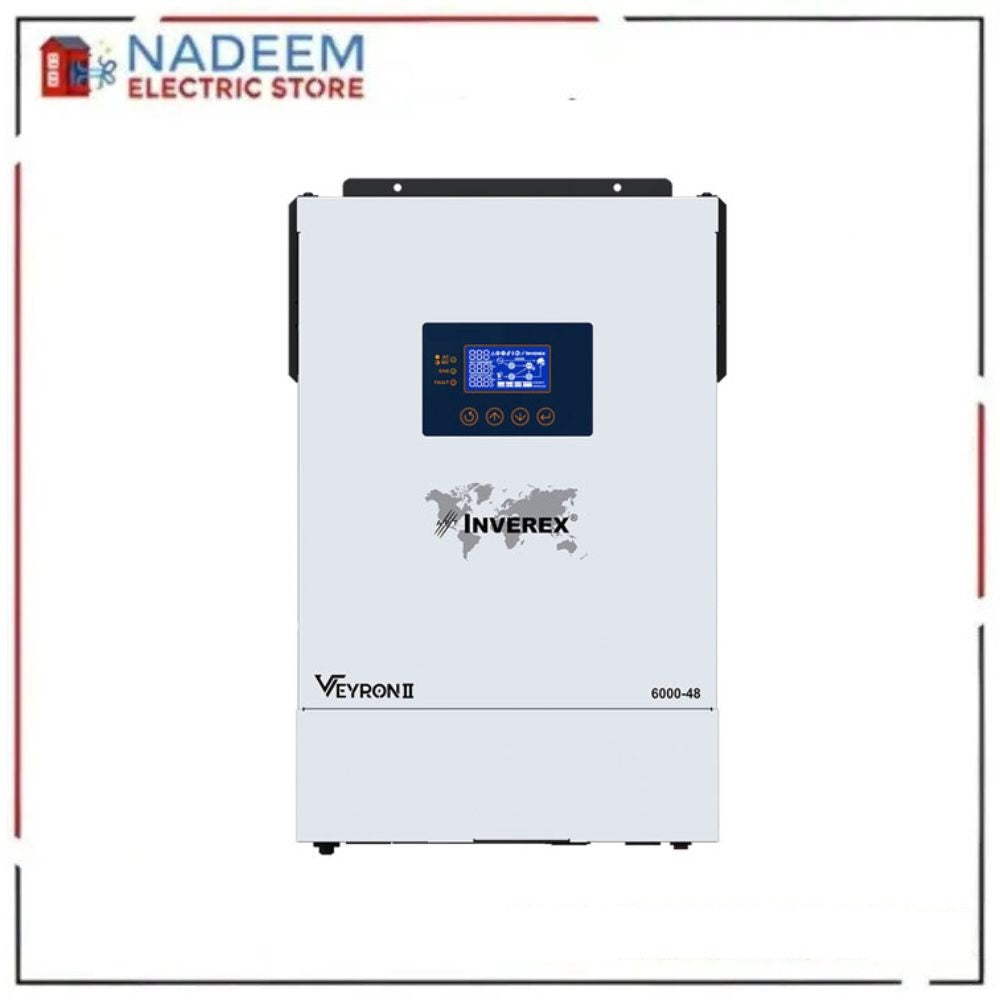

Inverex VEYRON II MPPT SOLAR INVERTER 6000W-48V
|
Section |
Feature |
Value |
|
Model |
VEYRON II 6000-48 |
|
|
|
Rated Power |
6000W |
|
INPUT |
Voltage |
230 VAC |
|
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) |
|
|
|
90-280 VAC (For Home Appliances) |
|
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
OUTPUT |
AC Voltage Regulation (Batt. Mode) |
230 VAC |
|
|
Overload Capacity |
"5s@
150% load; 10s@110%~150% load;" |
|
|
Efficiency (Peak) |
90% |
|
|
Transfer Time |
"10 ms (For Personal Computers)" |
|
|
|
"20 ms (For Home Appliances)" |
|
|
Waveform |
Pure sine wave |
|
|
Dual Outputs |
Yes |
|
BATTERY |
Battery Voltage |
48 VDC |
|
|
Floating Charge Voltage |
54 VDC |
|
|
Overcharge Protection |
66 VDC |
|
SOLAR CHARGER & AC CHARGER |
Solar Charger Type |
MPPT |
|
|
Maximum PV Array Open Circuit Voltage |
500 VDC |
|
|
Maximum PV Array Power |
6500W |
|
|
MPP Range @ Operating Voltage |
120 - 430 VDC |
|
|
Maximum Solar Charge Current |
120A |
|
|
Maximum AC Charge Current |
120A |
|
|
Maximum Charge Current |
120A |
|
|
Maximum Solar Input Current |
27A |
|
PHYSICAL |
Dimension, D x W x H (mm) |
140 x 295 x 468 |
|
|
Net Weight (kgs) |
11.0 |
|
|
Communication Interface |
RS485, RS232, Optional for Wi-Fi (Built-in BMS) |
|
OPERATING ENVIRONMENT |
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
|
Operating Temperature |
-10°C to 50°C |
|
|
Storage Temperature |
-15°C to 60°C |
