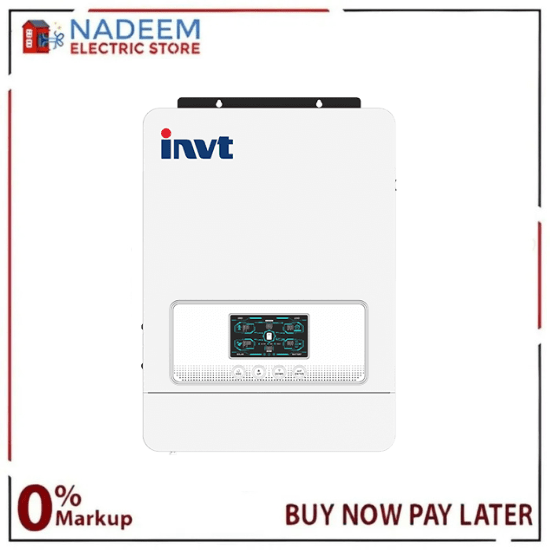

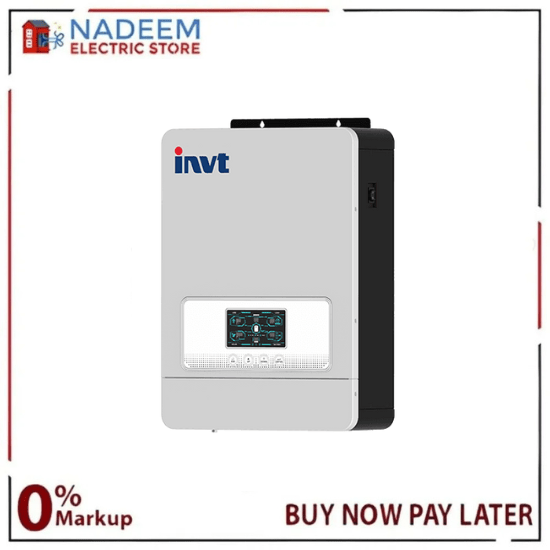

INVT XN8248-PRO Single Phase Off-Grid Solar Inverter

INVT XN8248-PRO Single Phase Off-Grid Solar InverterMODEL NAME: XN8248-PRO-WiFiMODEL NUMBER: XN8248-PRO-WiFiColor: White and BlackOperating Temperature Range: -10...
Vendor: INVT
Availability: In Stock
Rs.189,500.00
Rs.192,000.00
Rs.189,500.00
Please hurry! Only 50 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Zood Logo
Subtotal: Rs.189,500.00

Shipping

Cash on Delivery Available All over Pakistan .

Other city 5 to 7 day delivery

Estimated to be delivered on 30/08/2023 - 5/09/2023.

7 Days Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the customer

🔸 Cash on Delivery is available

🔸 Cash on Delivery is available 🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
INVT XN8248 - PRO Single Phase Off - Grid Solar Inverter - Nadeem Electric Store

INVT XN8248-PRO Single Phase Off-Grid Solar Inverter

Rs.192,000.00 Rs.189,500.00
INVT XN8248 - PRO Single Phase Off - Grid Solar Inverter - Nadeem Electric Store
INVT XN8248 - PRO Single Phase Off - Grid Solar Inverter - Nadeem Electric Store

INVT XN8248-PRO Single Phase Off-Grid Solar Inverter

Rs.192,000.00 Rs.189,500.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Description
Description
x

INVT XN8248-PRO Single Phase Off-Grid Solar Inverter
MODEL NAME: XN8248-PRO-WiFi
MODEL NUMBER: XN8248-PRO-WiFi
Color: White and Black
Operating Temperature Range: -10 ~ 50°C

Barcode: 920882501150004

PV INPUT:

  • Nominal operating voltage: 360Vdc

  • Vmax PV: 500Vdc

  • PV input voltage range: 90–450Vdc

  • Imax PV/Channels: 18.0A × 2 Channels

  • Full load MPPT range: 360–450Vdc

  • Maximum PV Input Power: 5400W + 5400W

  • Maximum Solar Charging Current: 160A

GRID/AC OUTPUT:

  • Nominal Output Voltage: 220/230/240Vac

  • Feed-in Grid Voltage Range: 195–253Vac

  • Feed-in Grid Frequency Range: 50 ± 1Hz

  • Nominal Output Current: 35.6A

  • Power Factor Range: > 0.99

  • Maximum Conversion Efficiency (DC/AC): 98%

  • Nominal Operating Frequency: 50/60Hz

TWO LOAD OUTPUT POWER:

  • Full Load: 8200W

  • Maximum Main Load: 8200W

  • Second Load Range: 1640W–5740W

  • Main Load Cut Off Voltage: ≤52VDC

  • Main Load Return Voltage: ≥54VDC

AC INPUT:

  • Nominal operating voltage: 230Vac

  • Maximum input current: 48.2A

  • Nominal operating frequency: 50/60Hz

  • Surge power: 16400VA

  • Maximum AC Charging Current: 140A

BATTERY:

  • Battery voltage: 48VDC

  • Maximum battery current: 190A

Read More
