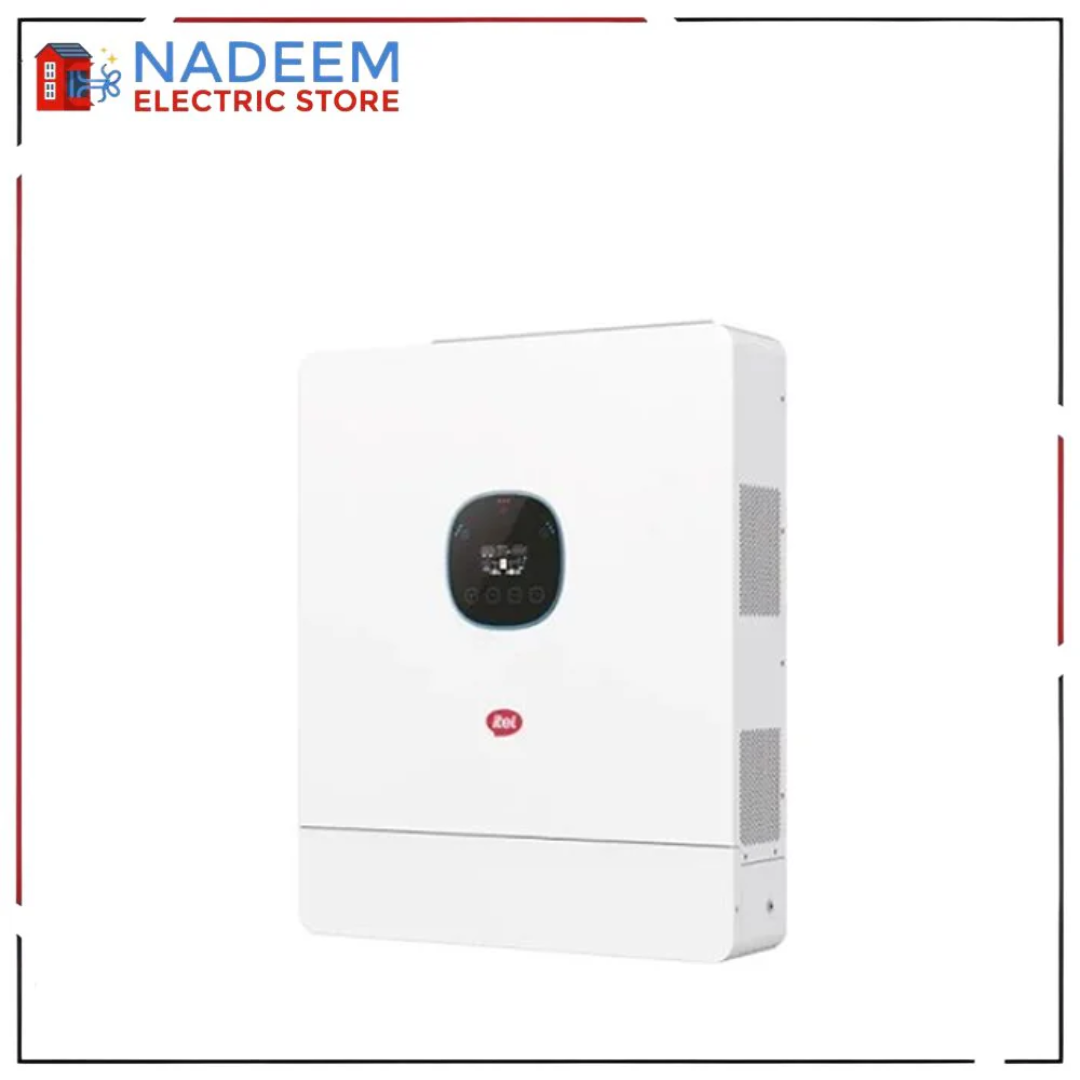

ITEL 8KW (IP54) HYBRID SOLAR INVERTER
ITEL 8KW (IP54) HYBRID SOLAR INVERTER

ITEL 8KW (IP54) HYBRID SOLAR INVERTER

Category Parameter Specification Efficiency MPPT Tracking Efficiency 99.5% Max. Battery Mode Conversion Efficiency 93% PV Input Max....
Vendor: ITEL
Availability: In Stock
Rs.223,000.00
Rs.225,000.00
Rs.223,000.00
Please hurry! Only 48 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Zood Logo
Subtotal: Rs.223,000.00

Shipping

Cash on Delivery Available All over Pakistan .

Other city 5 to 7 day delivery

Estimated to be delivered on 30/08/2023 - 5/09/2023.

7 Days Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the customer

🔸 Cash on Delivery is available

🔸 Cash on Delivery is available 🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
ITEL 8KW (IP54) HYBRID SOLAR INVERTER

ITEL 8KW (IP54) HYBRID SOLAR INVERTER

Rs.225,000.00 Rs.223,000.00
ITEL 8KW (IP54) HYBRID SOLAR INVERTER
ITEL 8KW (IP54) HYBRID SOLAR INVERTER

ITEL 8KW (IP54) HYBRID SOLAR INVERTER

Rs.225,000.00 Rs.223,000.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Description
Description
x

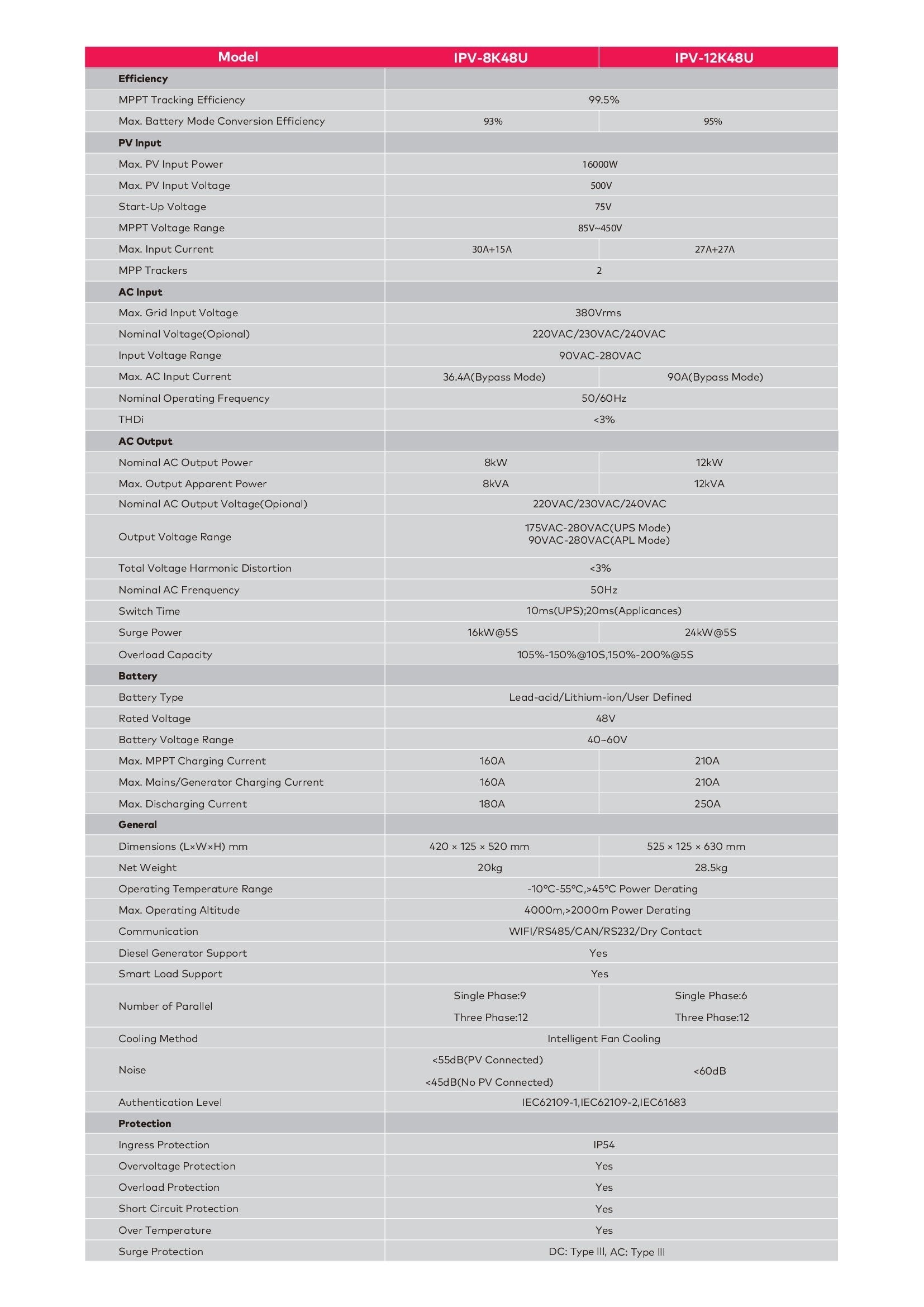

Category Parameter Specification
Efficiency MPPT Tracking Efficiency 99.5%
Max. Battery Mode Conversion Efficiency 93%
PV Input Max. PV Input Power 16000W
Max. PV Input Voltage 500V
Start-Up Voltage 75V
MPPT Voltage Range 85V-450V
Max. Input Current $30\text{A}+15\text{A}$
MPPT Trackers 2
AC Input Max. Grid Input Voltage 380Vrms
Nominal Voltage (Optional) $220\text{VAC}/230\text{VAC}/240\text{VAC}$
Input Voltage Range $90\text{VAC}-280\text{VAC}$
Max. Bypass Current $36.4\text{A}$ (Bypass Mode)
Nominal Operating Frequency $50/60\text{Hz}$
THDI $<3\%$
AC Output Nominal AC Output Power 8KW
Max. Output Apparent Power 8KVA
Output Voltage Range $175\text{V}/\text{AC}-280\text{V}$ (UPS Mode), $90\text{V}/\text{AC}-280\text{V}$ (APL Mode)
Total Voltage Harmonic Distortion $<3\%$
Switch Time $10\text{ms}$ (UPS), $20\text{ms}$ (Appliances)
Surge Power $16\text{kW}@5\text{s}$
Overload Capacity $105\%-150\%@10\text{s}, 150\%-200\%@5\text{s}$
Battery Rated Voltage 48V
Battery Voltage Range 40-60V
Max. MPPT Charging Current 160A
Max. Mains/Generator Charging Current 160A
Max. Discharging Current 180A
General Dimensions (L $\times$ W $\times$ H) mm $420 \times 125 \times 590\text{ mm}$
Net Weight $40\text{kg}$
Number of Parallel Single Phase: 9, Three Phase: 12
Noise $<55\text{dB}$ (PV Connected), $<45\text{dB}$ (No PV Connected)
