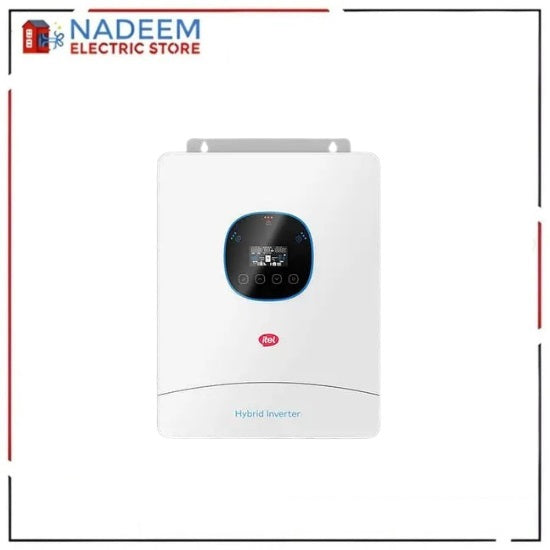

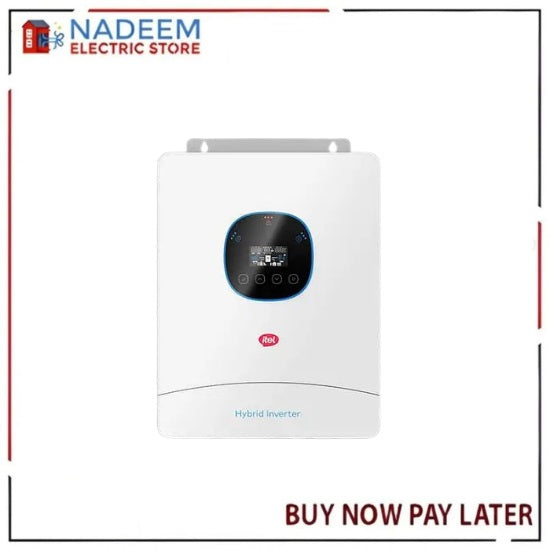

ITEL Inverter 4kW 24V SP Hybrid

Model: IPV-4K24U

Efficiency

  • MPPT Tracking Efficiency: 99.9%

  • Max. Battery Mode Conversion Efficiency: 93%

PV Input

  • Max. PV Input Power: 4000W

  • Max. DC Input Voltage: 500V

  • Start-up Voltage: 75V

  • MPPT Voltage Range: 85V-450V

  • Max. Input Current: 15A

  • Number of MPPT Trackers: 1

AC Input

  • Max. Grid Input Voltage (Absolute Maximum Ratings): >380VAC

  • Input Voltage Range: 90-280VAC

  • Maximum AC Input Current: 28A

  • Nominal Operating Frequency: 50/60Hz

AC Output

  • Nominal AC Output Power: 4000W

  • Max. Output Apparent Power: 4000VA

  • Nominal AC Output Voltage: 220/230/240VAC

  • Total Voltage Harmonic Distortion: <3%

  • Nominal AC Output Current: 18.2A

  • Max. AC Output Current: 36.4A (5 seconds)

  • Nominal AC Frequency: 50/60Hz

  • Switch Time: 10ms

  • Surge Power: 8000VA

  • Load Capacity of Motor: 3HP

  • Overload Capacity: 10s@110%~150% load, 5s@150%~200% load

Battery

  • Battery Type: Lead-acid/Li-ion/User Defined

  • Rated Battery Voltage: 24VDC

  • Battery Voltage Range: 20V-30V

  • Max. MPPT Charging Current: 100A

  • Max. Mains/Generator Charging Current: 100A

  • Max. Battery Discharging Current: 160A

General

  • Dimensions DWH (mm): 120346.6464.7

  • Net Weight (kg): 11.4

  • Operating Temperature Range: -10~+55℃, >45℃ Power Derating

  • Max. Operating Altitude: 4000m, >2000m Power Derating

  • Communication: WiFi/RS485(BMS)/Dry Contact/RS232

  • Diesel Generator Support: Yes, External ATS

  • Smart Load Support: Yes, External Contactor

  • Number of Parallel: Not support

  • Cooling Method: Intelligent Fan Cooling

  • Noise: <60dB

  • Authentication Level: IEC62109-1, IEC62109-2, IEC1683

Protection

  • Ingress Protection: IP54

  • Overvoltage Protection: Yes

  • Overload Protection: Yes

  • Short Circuit Protection: Yes

  • Over Temperature Protection: Yes

  • Surge Protection: DC: Type II, AC: Type III
