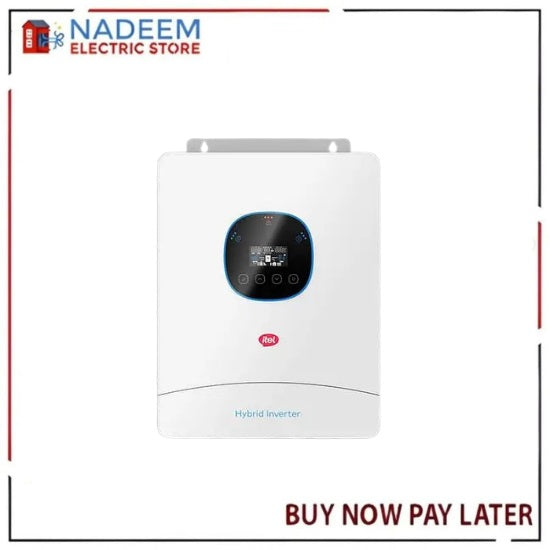

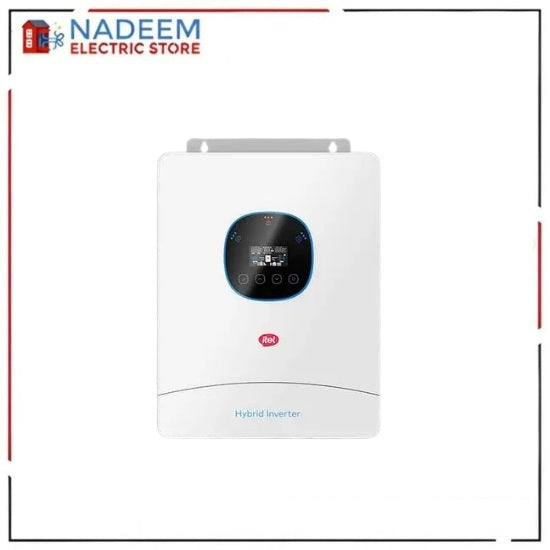

ITEL Inverter 6kW 48V SP Hybrid
ITEL Inverter 6kW 48V SP Hybrid

ITEL Inverter 6kW 48V SP Hybrid

ITEL Inverter 6kW 48V SP Hybrid Model: IPV-6K48U Efficiency MPPT Tracking Efficiency: 99.9% Max. Battery Mode Conversion...
Vendor: ITEL
Availability: In Stock
Rs.155,000.00
Rs.160,000.00
Rs.155,000.00
Please hurry! Only 50 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Zood Logo
Subtotal: Rs.155,000.00

Shipping

Cash on Delivery Available All over Pakistan .

Other city 5 to 7 day delivery

Estimated to be delivered on 30/08/2023 - 5/09/2023.

7 Days Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the customer

🔸 Cash on Delivery is available

🔸 Cash on Delivery is available 🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
ITEL Inverter 6kW 48V SP Hybrid

ITEL Inverter 6kW 48V SP Hybrid

Rs.160,000.00 Rs.155,000.00
ITEL Inverter 6kW 48V SP Hybrid
ITEL Inverter 6kW 48V SP Hybrid

ITEL Inverter 6kW 48V SP Hybrid

Rs.160,000.00 Rs.155,000.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Description
Description
x

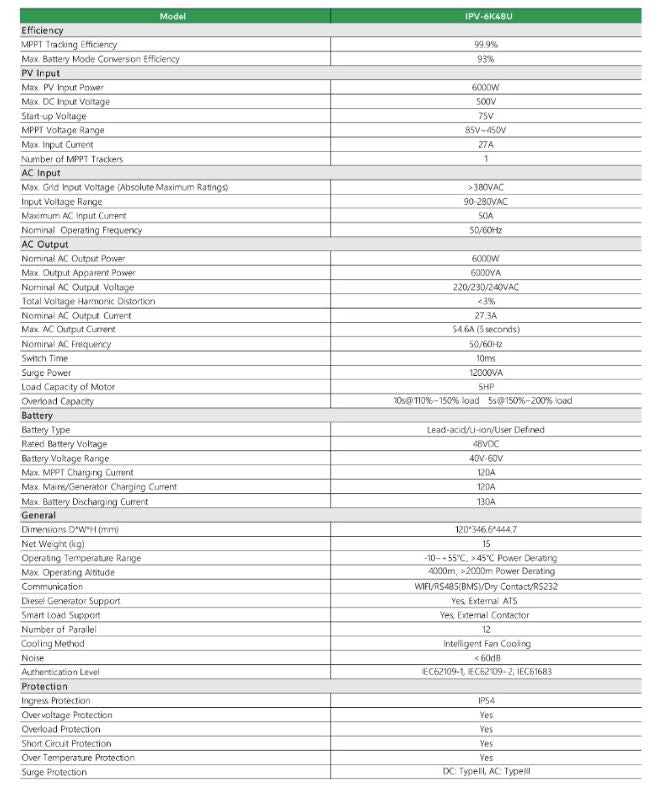

ITEL Inverter 6kW 48V SP Hybrid

Model: IPV-6K48U

Efficiency

  • MPPT Tracking Efficiency: 99.9%

  • Max. Battery Mode Conversion Efficiency: 93%

PV Input

  • Max. PV Input Power: 6000W

  • Max. DC Input Voltage: 500V

  • Start-up Voltage: 75V

  • MPPT Voltage Range: 85V-450V

  • Max. Input Current: 27A

  • Number of MPPT Trackers: 1

AC Input

  • Max. Grid Input Voltage (Absolute Maximum Ratings): >380VAC

  • Input Voltage Range: 90-270VAC

  • Maximum AC Input Current: 30A

  • Nominal Operating Frequency: 50/60Hz

AC Output

  • Nominal AC Output Power: 6000W

  • Max. Output Apparent Power: 6000VA

  • Nominal AC Output Voltage: 220/230/240VAC

  • Total Voltage Harmonic Distortion: <3%

  • Nominal AC Output Current: 27.3A

  • Max. AC Output Current: 54.6A (5 seconds)

  • Nominal AC Frequency: 50/60Hz

  • Switch Time: 10ms

  • Surge Power: 12000VA

  • Load Capacity of Motor: 8HP

  • Overload Capacity: 10s@110%~150% load, 5s@150%~200% load

Battery

  • Battery Type: Lead-acid/Li-ion/User Defined

  • Rated Battery Voltage: 48VDC

  • Battery Voltage Range: 40V-60V

  • Max. MPPT Charging Current: 120A

  • Max. Mains/Generator Charging Current: 120A

  • Max. Battery Discharging Current: 138A

General

  • Dimensions DWH (mm): 120346.6464.7

  • Net Weight (kg): 15

  • Operating Temperature Range: -10~+55℃, >45℃ power derating

  • Max. Operating Altitude: 4000m, >2000m Power Derating

  • Communication: Wifi/RS485/Dry/Dry Contact/RS232

  • Smart Generator Support: Yes, External ATS

  • Smart Load Support: Yes, External Contactor

  • Number of Parallel: 12

  • Cooling Method: Intelligent Fan Cooling

  • Noise: <60dB

  • Authentication Level: IEC62109-1, IEC6209-2, IEC1683

Protection

  • Ingress Protection: IP54

  • Overvoltage Protection: Yes

  • Overload Protection: Yes

  • Short Circuit Protection: Yes

  • Over Temperature Protection: Yes

  • Surge Protection: DC Type II, AC Type III
