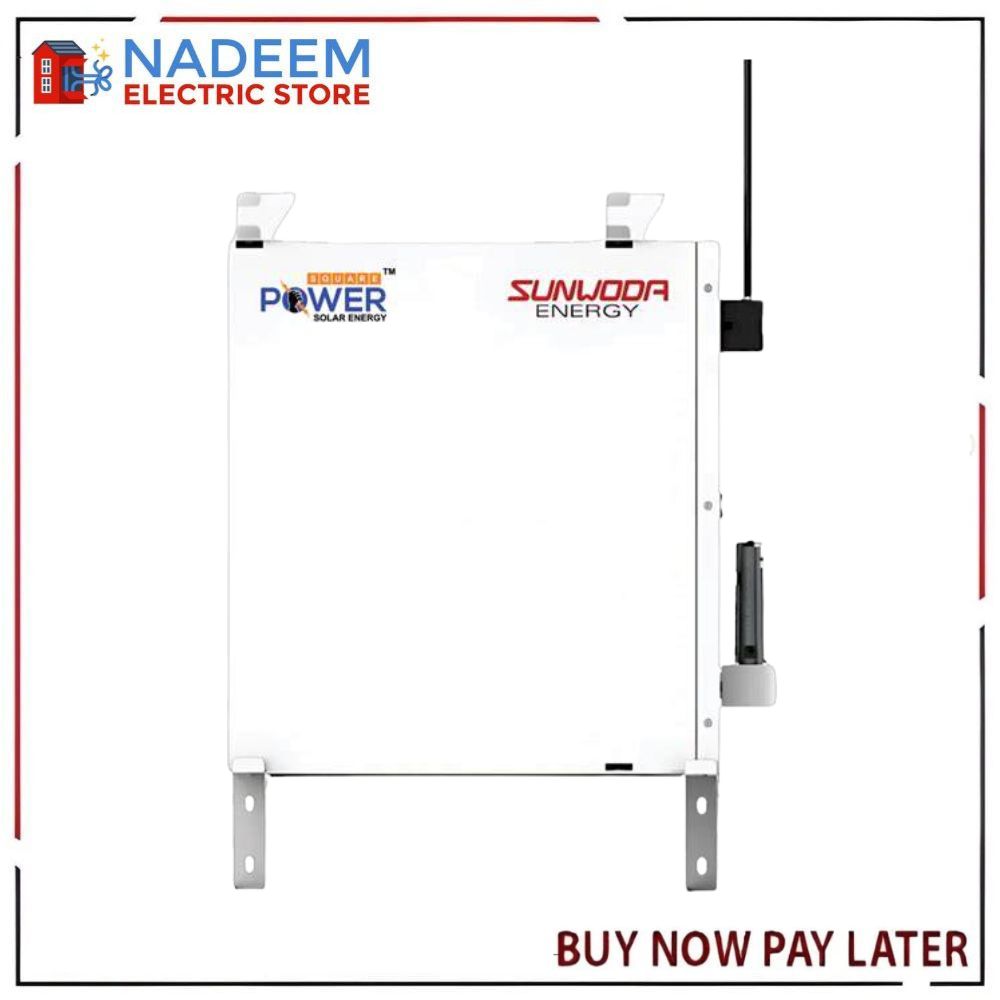

Power Square (Sunwoda) Atrix Lithium Battery- 51.2V 100ah only for karachi
Square Sunwoda Lithium Ion Battery ( 51.2V 5.2KWH )
Smart Power Voltix Lithium Ion Battery - 6000 cycles- Wall Mounted Version
--------------
Modular design, wall mounted installation
Plug and play, save time and effort, cost-effective
Support 100% DOD, low-temperature operation (-10°C) (optional).
Real-time data acquisition, real-time monitoring, support
remote operation and upgrade (optional).
-------------------------------------------
Product specifications
Model Atrix Smart-5 Atrix Smart-10 Atrix Smart-15 Atrix Smart-20
Nominal energy 5kWh 10kWh 15kWh 20kWh
Usable energy(100% DOD) 5kWh 10kWh 15kWh 20kWh
Rated voltage 51.2V 51.2V 51.2V 51.2V
Charge/discharge cut off voltage 44.8V~55.2V 44.8V~55.2V 44.8V~55.2V 44.8V~55.2V
Roundtrip efficiency >98% >98% >98% >98%
Rated charge/discharge current 50A/50A 100A/100А 150A/150A 200A/200А
Max. charge/discharge current 100A/100А 180A/180A 200A/200A 200A/200A
Communication interface CAN 2.0/RS485
Operating temperature Discharging:-4°F to 122°F (-20°C to 50°C), Charging:32°F to 122°F (0°C to 50°C)
Dimensions (W*H*D, mm) 482*135*433(Single battery pack)
Weight 45kg/90kg/135kg/180kg
Enclosure protection rating IP20
Warranty 6 years
Certifications IEC62619/CE/UN38.3
* DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge at 25°C.
* Charge/discharge derating occurs when the operating temperature from -10°C to 5°C.
