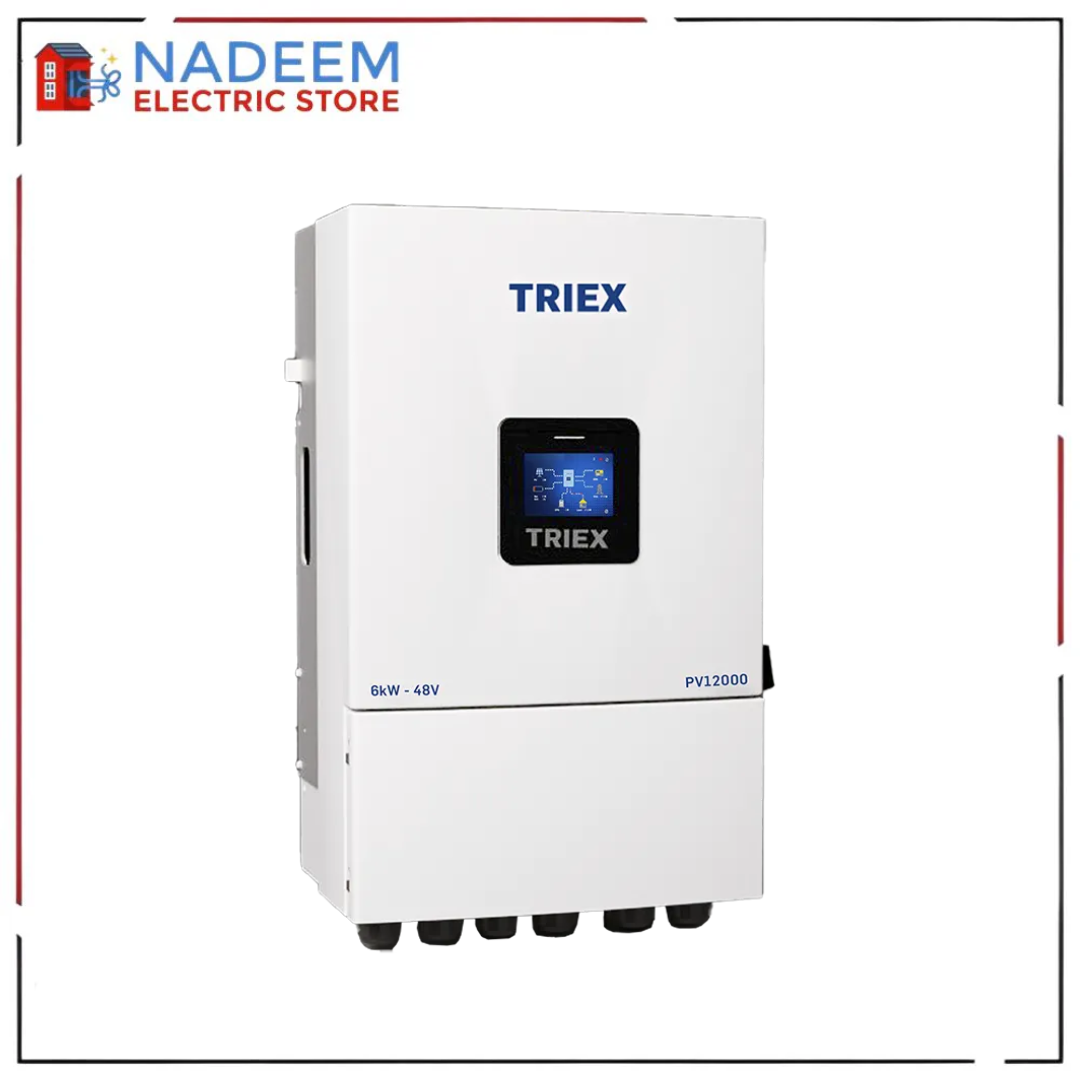

Triex 6kW, PV12000 (IP66) SINGLE PHASE HYBRID LV INVERTERS
Triex 6kW, PV12000 (IP66) SINGLE PHASE HYBRID LV INVERTERS Feature Specification Input DC Max. input power 12kW...
Vendor:
Triex
Availability:
In Stock
- Rs.228,000.00
Rs.231,000.00- Rs.228,000.00
- Unit price
- per
Please hurry! Only 50 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
Rs.228,000.00
Shipping
Cash on Delivery Available All over Pakistan .
Other city 5 to 7 day delivery
Estimated to be delivered on 30/08/2023 - 5/09/2023.
7 Days Returns
7 Days Return Policy
Change of mind is not applicableReturn charges will Pay by the customer
🔸 Cash on Delivery is available
🔸 Cash on Delivery is available
🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
Description

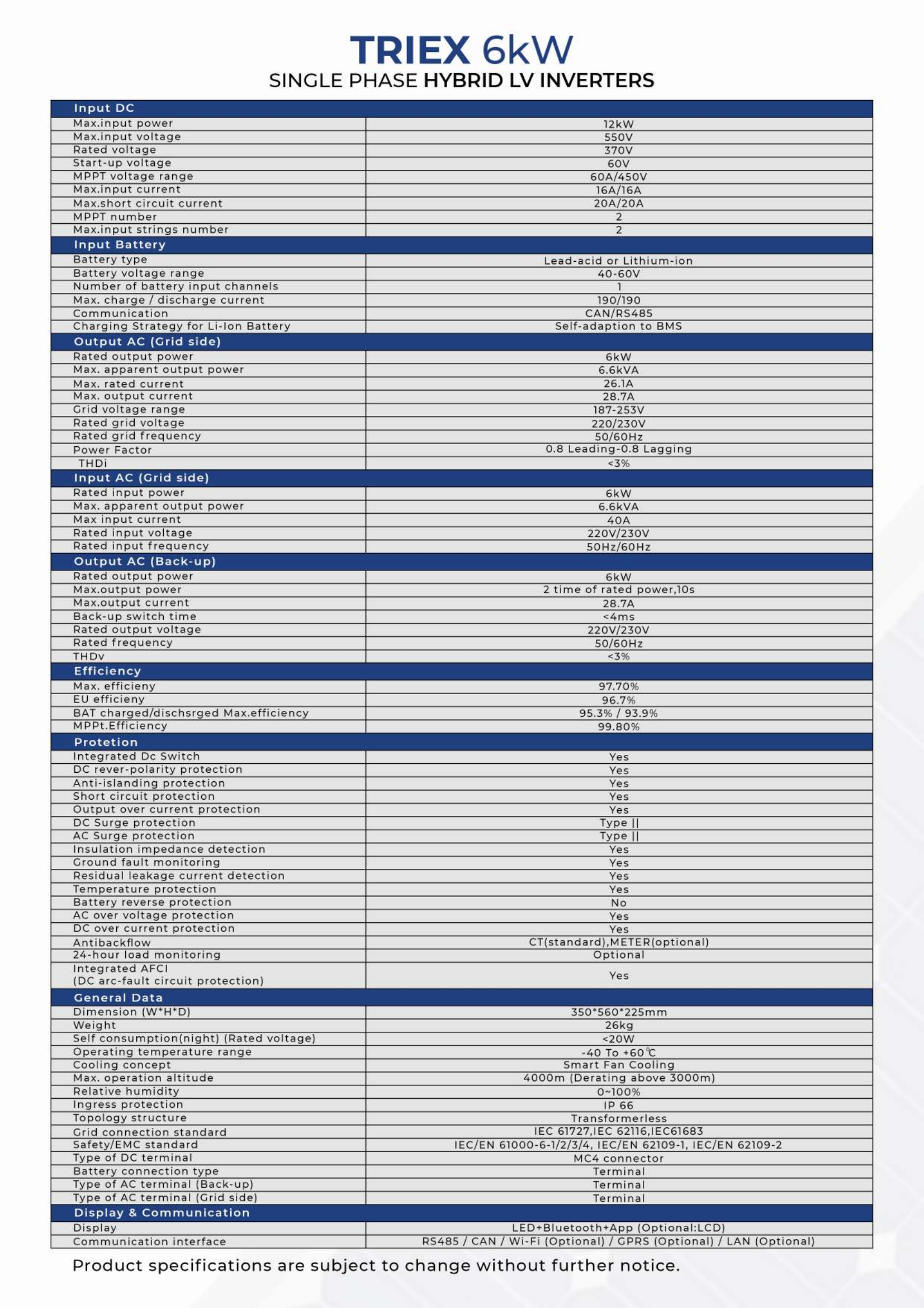

xTriex 6kW, PV12000 (IP66) SINGLE PHASE HYBRID LV INVERTERS
| Feature | Specification |
| Input DC | |
| Max. input power | 12kW |
| Nominal DC voltage | 360V |
| Rated voltage | 370V |
| Max. DC voltage | 550V |
| MPPT voltage range | 60V/450V |
| Start-up DC voltage | 80V |
| Min. DC voltage | 40V |
| Max. short circuit current | 20A/20A |
| Max. input current | 15A/15A |
| Max. input strings number | 2 |
| Battery | |
| Battery type | Lead-acid or Lithium-ion |
| Battery voltage range | 40-60V |
| Max. charge current | 150A |
| Max. discharge current | 150A |
| Number of battery input channels | 1 |
| Max. reverse charge current | 200A |
| Communication | CAN/RS485 |
| Charging strategy for Li-ion battery | Self-adaption to BMS |
| Output AC (Grid side) | |
| Max. apparent output power | 6.6kVA |
| Max. apparent output power | 6.6kVA |
| Max. output power | 6kW |
| Max. output current | 28.7A |
| Max. input power | 12kVA |
| Max. input current | 52.2A |
| Rated grid voltage | 220V/230V |
| Rated grid frequency | 50Hz/60Hz |
| Power Factor | $\ge 0.8$ Leading, $\le 0.8$ Lagging |
| THDi | $<3\%$ |
| Input AC (Grid side) | |
| Max. apparent output power | 6.6kVA |
| Max. apparent output power | 6.6kVA |
| Max. output power | 6kW |
| Rated input voltage | 220V/230V |
| Rated input frequency | 50Hz/60Hz |
| Output AC (Back-up) | |
| Max. output power | 6kW |
| Max. output power | 2 times of rated power, 10s |
| Max. output current | 28.7A |
| Back-up switch time | 4ms |
| Rated output voltage | 220V/230V |
| Rated frequency | 50Hz/60Hz |
| THDv | $<3\%$ |
| Efficiency | |
| Max. efficiency | $97.70\%$ |
| Euro efficiency | $97.10\%$ |
| DC to charged/discharged Max. efficiency | $95.5\%/93.9\%$ |
| MPPT Efficiency | $99.90\%$ |
| Protection | |
| Input string DC Switch | Yes |
| DC rever-polarity protection | Yes |
| Battery reverse polarity | Yes |
| Short circuit protection | Yes |
| Output overcurrent protection | Yes |
| Surge protection | Type II |
| DC surge protection | Type II |
| Insulation impedance detection | Yes |
| AC side fault protection | Yes |
| Residual leakage current detection | Yes |
| Ground fault monitoring | Yes |
| Battery reverse protection | No |
| AC output voltage protection | Yes |
| AC output current protection | Yes |
| Anti-backflow | CT (Standard) Meter (Optional) |
| Reverse current monitoring | Optional |
| Integrated AFCI | Yes |
| Grid (AC side short circuit protection) | Yes |
| General Data | |
| Dimension ($\text{W} \times \text{H} \times \text{D}$) | $350^*360^*225$mm |
| Weight | 26kg |
| Self-consumption(night) (Rated voltage) | $<10\text{W}$ |
| Operating temperature range | $-40^\circ \text{C}$ to $60^\circ \text{C}$ |
| Cooling concept | Smart air cooling |
| Max. operation altitude | $4000\text{m}$ (Derating above $3000\text{m}$) |
| Mounting method | Wall mount |
| Ingress protection | IP66 |
| Relative humidity | $5\%\sim 95\%$, no condensation |
| Grid connection standard | IEC 61727, IEC 62116, IEC61683 |
| Safety/EMC standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Type of DC terminal | MC4 connector |
| Type of AC terminal (Grid) | Terminal |
| Type of AC terminal (Back-up) | Terminal |
| Type of AC terminal (Load-side) | Terminal |
| Display & Communication | |
| Display | LED+Bluetooth (Optional)+LCD |
| Communication interface | RS485/CAN/Wi-Fi (Optional)/GPRS (Optional)/LAN (Optional) |
