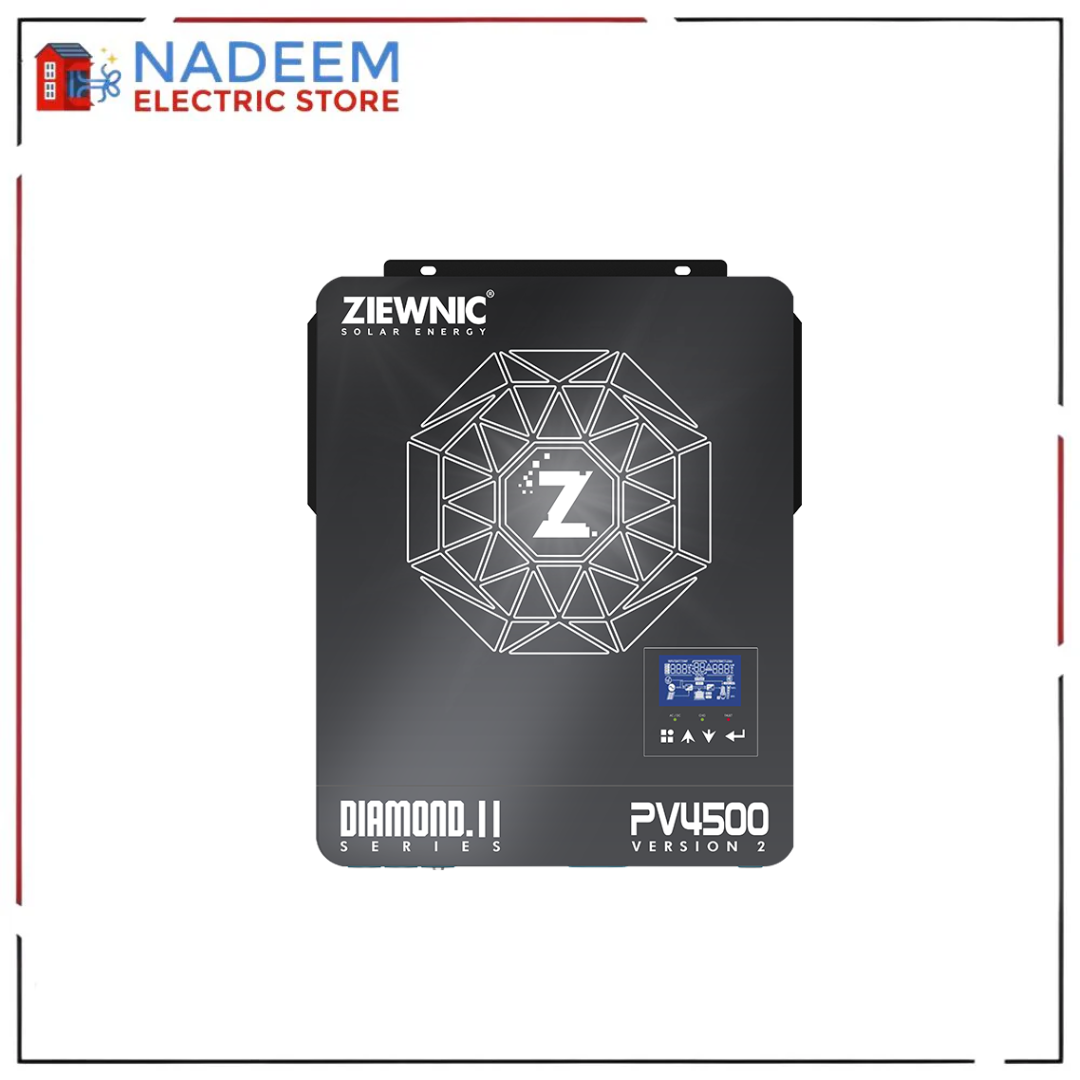

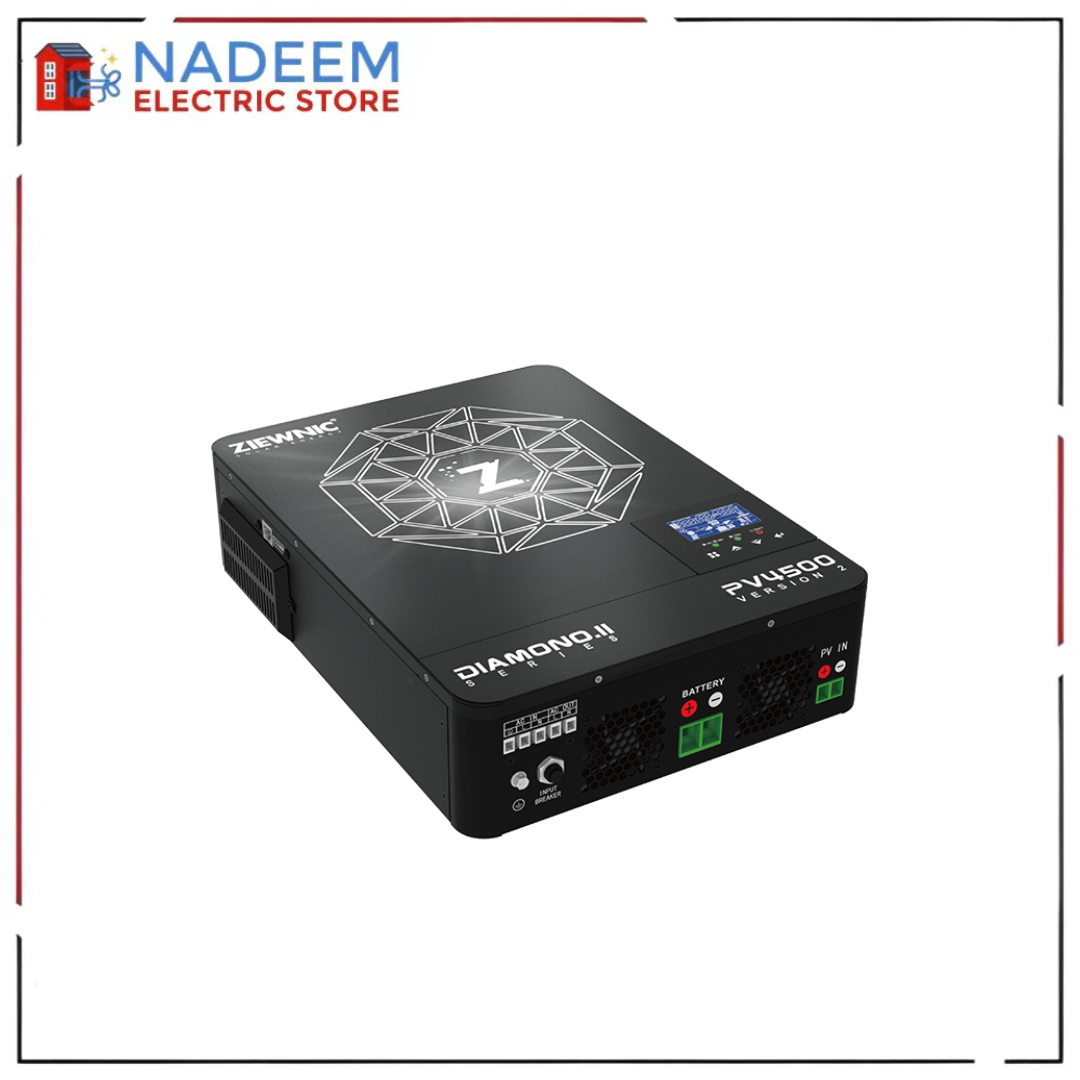

ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER
ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER

ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER

ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER SPECIFICATION Rated Power 3200VA AC...
Vendor: ZIEWNIC
Availability: In Stock
Rs.83,000.00
Rs.85,000.00
Rs.83,000.00
Please hurry! Only 50 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Zood Logo
Subtotal: Rs.83,000.00

Shipping

Cash on Delivery Available All over Pakistan .

Other city 5 to 7 day delivery

Estimated to be delivered on 30/08/2023 - 5/09/2023.

7 Days Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the customer

🔸 Cash on Delivery is available

🔸 Cash on Delivery is available 🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER

ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER

Rs.85,000.00 Rs.83,000.00
ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER
ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER

ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER

Rs.85,000.00 Rs.83,000.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Description
Description
x

ZIEWNIC DIAMOND II PV 4500 3.2KW 100% PURE SINE WAVE SOLAR INVERTER

SPECIFICATION
Rated Power 3200VA
AC Input
Ac Input 230 VAC
Voltage 170~280 VAC (For Personal Computer)
Selectable Voltage Range 90~280VAC (For Home Appliances)
Frequency Range 50 HZ / 60 HZ (Auto Sensing)
AC OUTPUT
AC Voltage Regulation 230 VAC + 5%
Nominal Current Output 14.54A
Efficiency (Peak) PV to INV 97%
Efficiency (Peak) Battery to INV 94%
Transfer Time 10ms Typical(MS); 20ms Stapical( Appliances)
BATTERY AND AC CHARGER
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 33 VDC
Maximum AC Charge Current 80A
SOLAR CHARGER
Maximum PV Array Power 4500W
MPPT Range @ Operating Voltage 55-430 VDC
Maximum PV Array Open Circuit Voltage 430 VDC
Maximum Charge Current TRUE (MPPT) 80A
Maximum PV Input Current 18A
Maximum Efficiency 98%
PHYSICAL
Communication Interface RS323/GPRS/Wi-Fi
OPERATING ENVIRONMNET
Humidity 5% to 95% Relative Humidity (Non~Condensing)
Operating Temperature 0°C~55°C
Storage Temperature -15°C-~60°C
