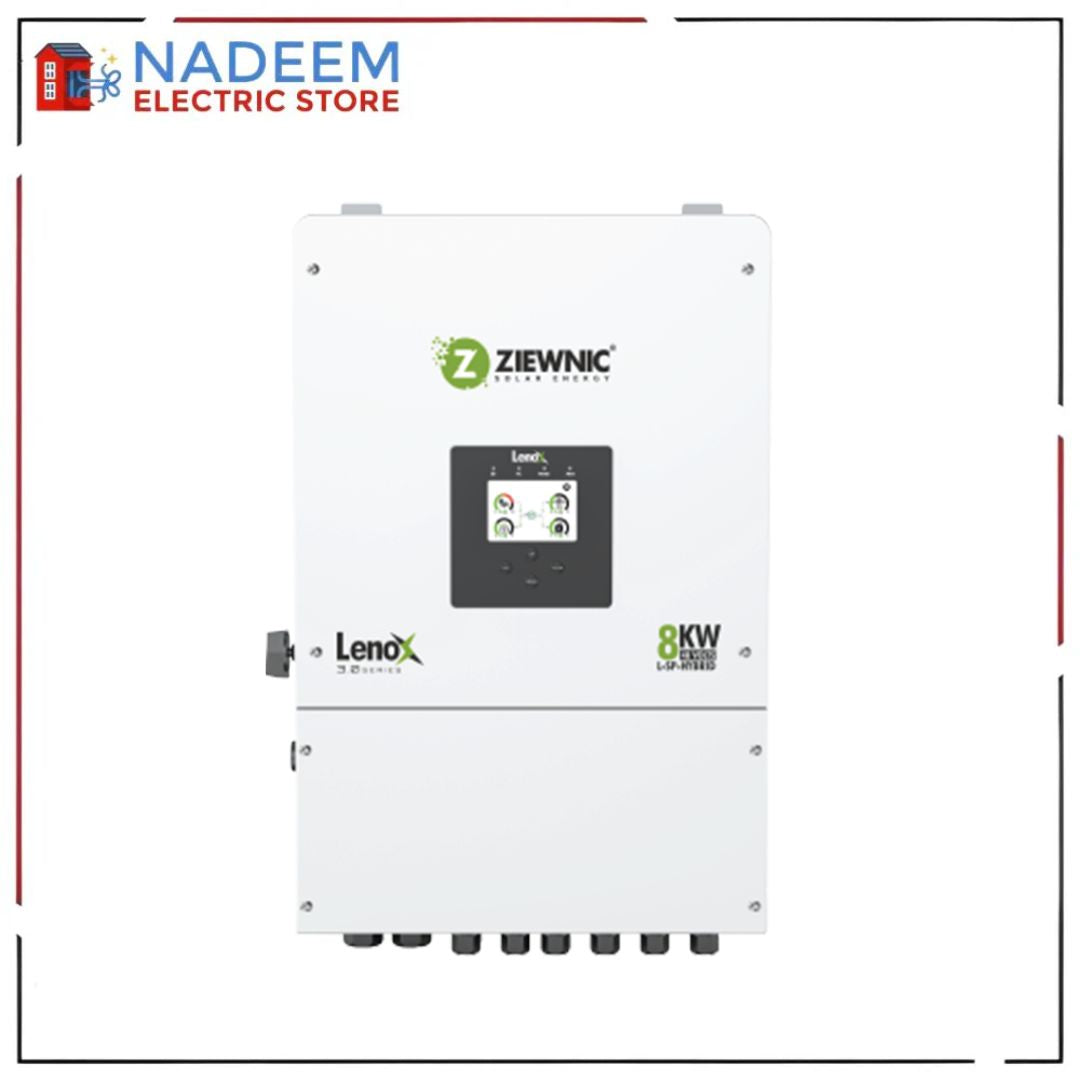

ZIEWNIC LENOX SERIES  HYBRID ON / OFF GRID 8KW (PV10500) 48V WITH ENERGY STORAGE

SPECIFICATION
Rated Power 6000W
PV INPUT
Max.power(KW) 10500
Max.DC voltage(V) 500
MPPT voltage range(V) 125 - 430
Max.input current(A) 26+26
Max.input strings number 2+2
AC OUTPUT (GRID-TIED)
Grid voltage/range(V) 220/230V (Single Phase)
Frequency(Hz) 50/60
PF 0.8lagging-0.8leading
THDi <3%
AC output topology L+N+PE
BATTERY
Battery Voltage Range (V) 40~63
Max.charging voltage(V) 63
Max.charge/discharge current(A) 190/190
Battery Type Lithium / Lead-acid / Tubular
UPS OUTPUT
Rated power (kw) 8
Peak Power (Off Grid) 2 Times of rated power 10Sec
Rated output current(A) 36.3
Rated frequency (Hz) 50/60
Transfer Time(ms) <10
THDu <10%
Overload capacity 5s > 110%load; 10s >≥101%~110% load
PROTECTION & FEATURE
Anti-island protection Yes
Insulation monitoring Yes
Residual current monitoring Yes
Arc fault protection Yes (Optional)
Parallel function Yes, Multiple
Other protection AC Over-Current, AC Over-Voltage, Over Temperature Protection
GENERAL SPECIFICATIONS
Efficiency (peak) 99%
Degree of protection Class 1
Operation temperature range (°C) -40°C~60°C, >45°C derating
Cooling Smart Cooling
Relative humidity 5~95%(non-condensing)
Altitude (>2000m Derating)
Dimensions W x D x H(mm) 413*630*257.5
EMC/Safety Regulation IEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Isolation transformer No
Self-consumption(W) <5
DISPLAY AND COMMUNICATION
Display Touch screen
Interface Standard:RS232,CAN&RS485; Optional:WiFi,CT
Safety standard EN/IEC62109-1,EN/IEC62109-2
