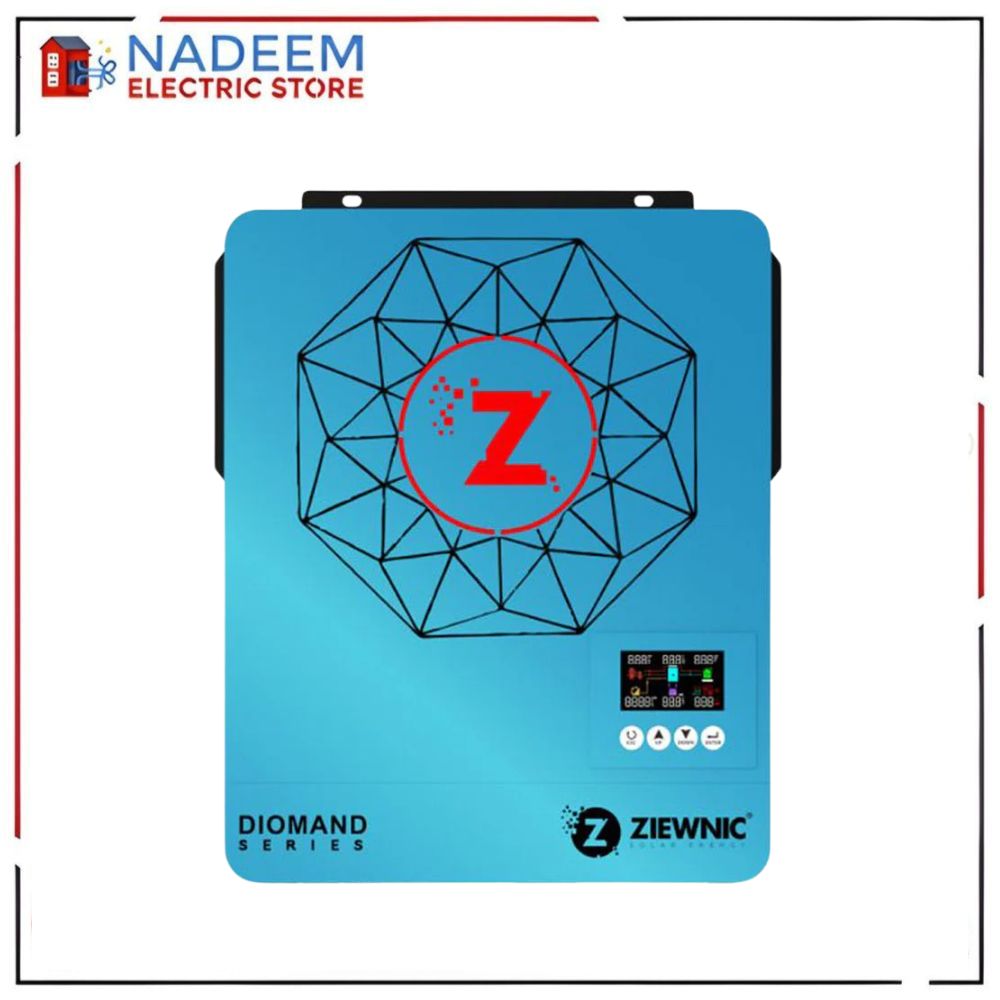

ZIEWNIC Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY - Nadeem Electric Store
ZIEWNIC DIAMOND Series Inverter Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY
ZIEWNIC Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY - Nadeem Electric Store

ZIEWNIC DIAMOND Series Inverter Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY

SPECIFICATION Phase 1-Phase Maximum PV Input Power 8500 W Rated Output Power 6500 W Maximum Solar Charging...
Vendor: ZIEWNIC
Availability: In Stock
Rs.143,000.00
Rs.145,000.00
Rs.143,000.00
Please hurry! Only 10 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Zood Logo
Subtotal: Rs.143,000.00

Shipping

Cash on Delivery Available All over Pakistan .

Other city 5 to 7 day delivery

Estimated to be delivered on 30/08/2023 - 5/09/2023.

7 Days Returns

7 Days Return Policy

Change of mind is not applicable

Return charges will Pay by the customer

🔸 Cash on Delivery is available

🔸 Cash on Delivery is available 🔹 But please note: Delivery charges must be paid in advance to the company’s account to confirm your order. ✅
ZIEWNIC DIAMOND Series Inverter Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY

ZIEWNIC DIAMOND Series Inverter Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY

Rs.145,000.00 Rs.143,000.00
ZIEWNIC DIAMOND Series Inverter Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY
ZIEWNIC Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY - Nadeem Electric Store

ZIEWNIC DIAMOND Series Inverter Solar Hybrid Inverter 6.5(KW) 5G PV8500 ON/OFF/MKS/KS 100% Pure Sine Wave Solar Inverter 5 YEAR BRAND WARRANTY

Rs.145,000.00 Rs.143,000.00
Please Select Cod For Cash/Credit Card Or BNPL For Installment: Cod
Description
Description
x

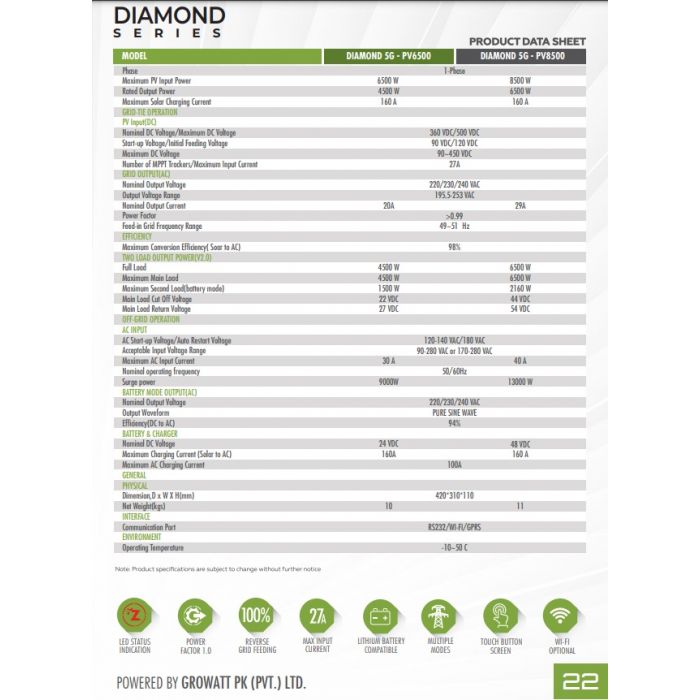

SPECIFICATION
Phase 1-Phase
Maximum PV Input Power 8500 W
Rated Output Power 6500 W
Maximum Solar Charging Current 160 A
GRID TIE OPERATION
PV INPUT ( DC )
Nominal DC Voltage/Maximum DC Voltage 360 VDC/500 VDC
Start-up Voltage/Initial Feeding Voltage 90 VDC/120 VDC
Maximum DC Voltage 90~450 VDC
Number of MPPT Trackers/Maximum Input Current 27A
GRID OUTPUT ( AC )
Nominal Output Voltage 220/230/240 VAC
Output Voltage Range 195.5-253 VAC
Nominal Output Current 29A
Power Factor >0.99
Feed-in Grid Frequency Range 49~51±Hz
EFFICIENCY
Maximum Conversion Efficiency( Soar to AC) 98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load 6500 W
Maximum Main Load 6500 W
Maximum Second Load(battery mode) 2160 W
Main Load Cut Off Voltage 44 VDC
Main Load Return Voltage 54 VDC
OFF-GRID OPERATION
AC Input
AC Start-up Voltage/Auto Restart Voltage 120-140 VAC/180 VAC
Acceptable Input Voltage Range 90-280 VAC or 170-280 VAC
Maximum AC Input Current 40A
Nominal operating frequency 50/60Hz
Surge power 13000W
BATTERY MODE OUTPUT ( AC )
Nominal Output Voltage 220/230/240 VAC
Output Waveform PURE SINE WAVE
Efficiency(DC to AC) 94%
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Charging Current (Solar to AC) 160A
Maximum AC Charging Current 100A
GENERAL
PHYSICAL
Dimension,D x W X H(mm) 420*310*110
Net Weight(kgs) 11
INTERFACE
Communication Port RS232/WI-FI/GPRS
ENVIRONMENT
Operating Temperature -10~50°C
Read More
